17
Installing the Motherboard
Connecting Case Components
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:

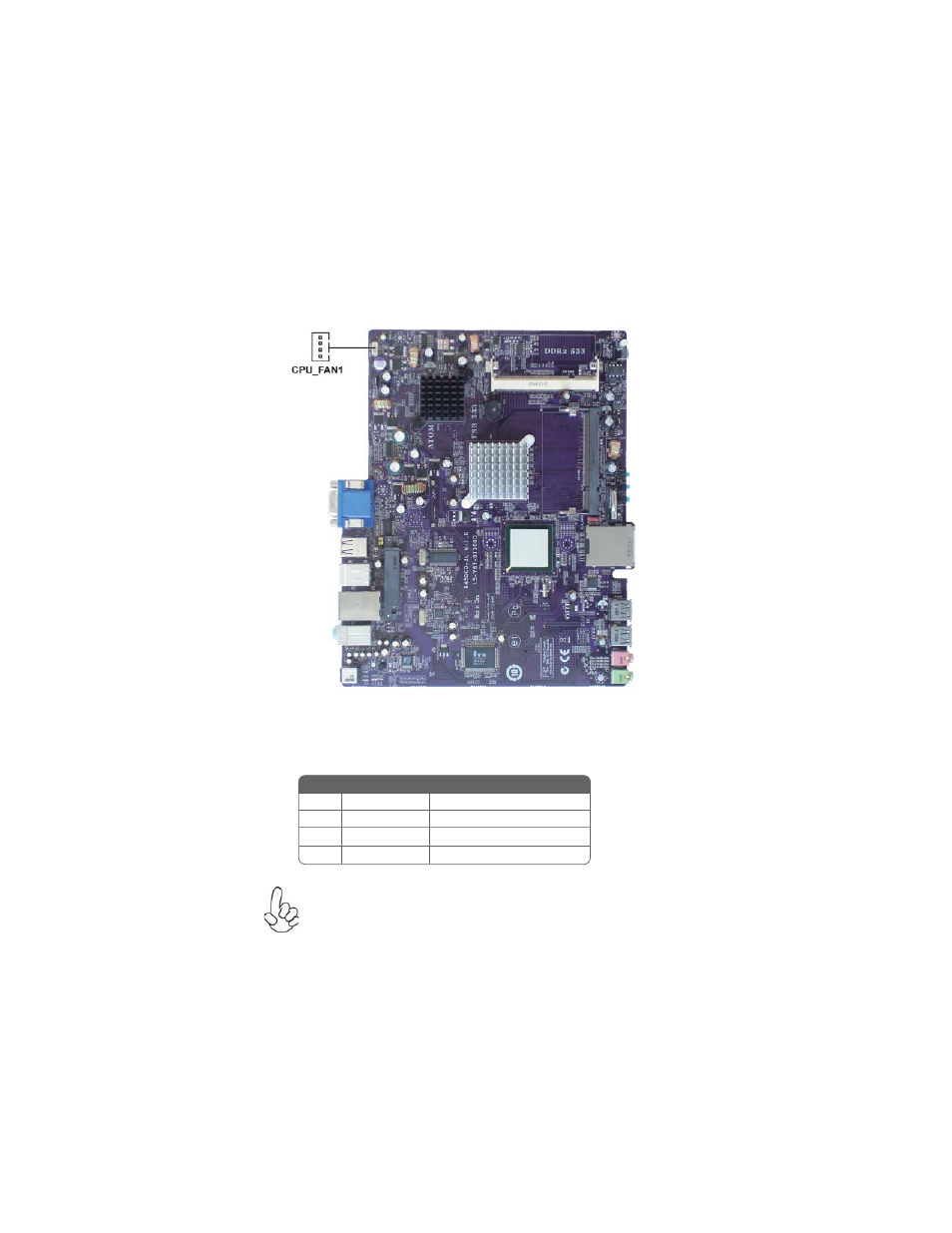

1 Connect the CPU cooling fan connector to CPU_FAN1.
Pin Signal Name Function
1 GND System Ground
2 +12V Power +12V
3 Sense Sensor
4 PWM CPU FAN control
CPU_FAN1: FAN Power Connertor
Users please note that the fan connector supports the CPU cooling fan
of 1.1A~2.2A (26.4W max.) at +12V.
