<4. Engineering>
4-8
IM 11B06E01-01E
4.2.4
Transfer to ASGW
Open the FTP window on PC that is shown in 4.2.2.
Move the modified mapping file to FTP window.
Restart ASGW after over writing is complete.
4.2.5
Diagnosis information

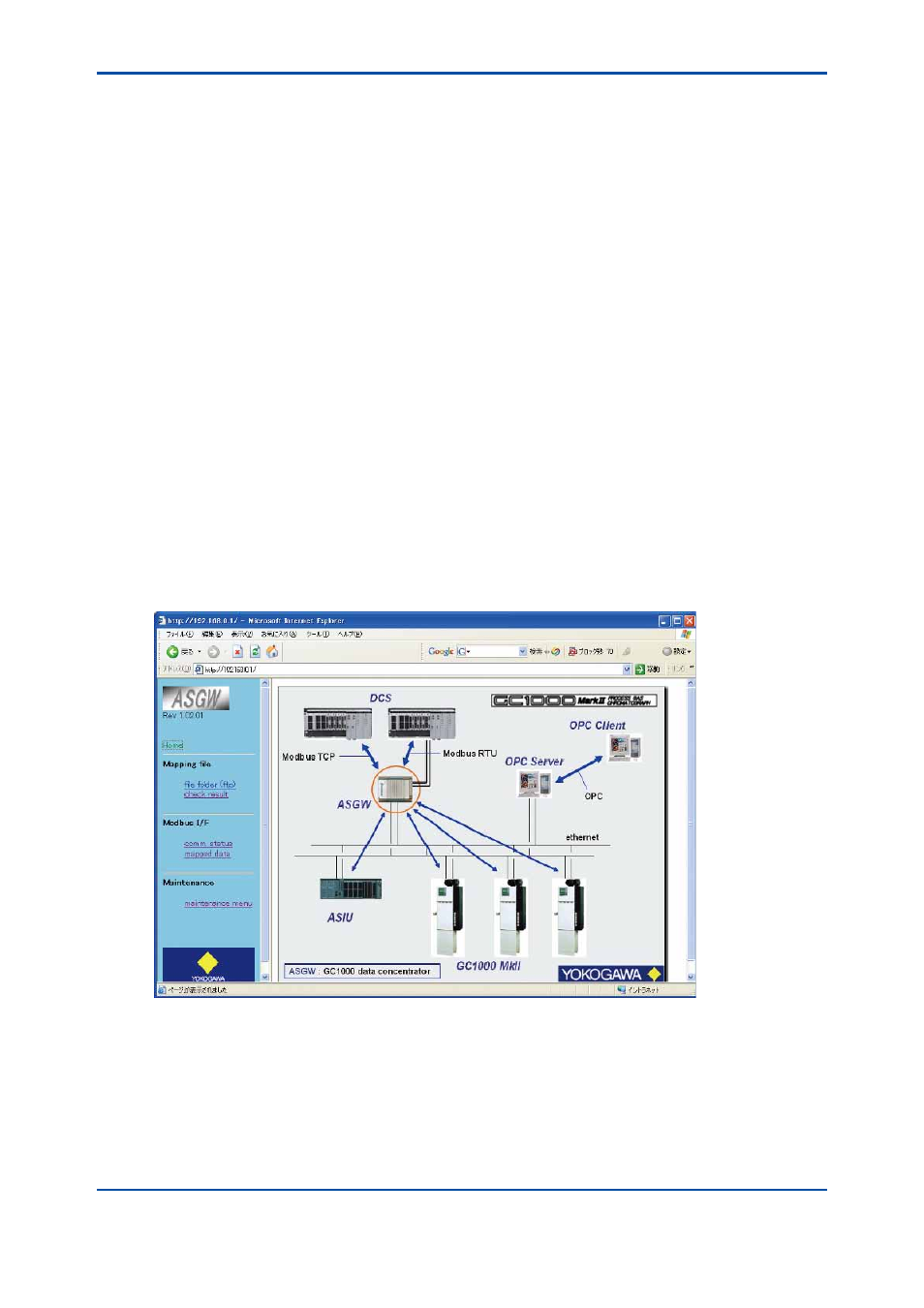

After re-starting the ASGW, Open the diagnostic window of ASGW.
When “check result” is clicked, the diagnosis information window appears.
The contents are as follows.
(a) Out of range addressing
(b) Duplicated addressing
(c) Invalid combination of mapping
Modify the setting file according to the error that is shown in this window.
If the file includes errors, ASGW ignores the error occurred line on the file.
4.2.6
Transferring the mapping file by means other than
Internet Explorer
A. Restriction on functions with IE7 or later
As an alternative, enter FTP commands in the Command Prompt window to transfer the mapping
file.
4th Edition : Nov. 22, 2011-00
