<4. Engineering>
4-3
IM 11B06E01-01E

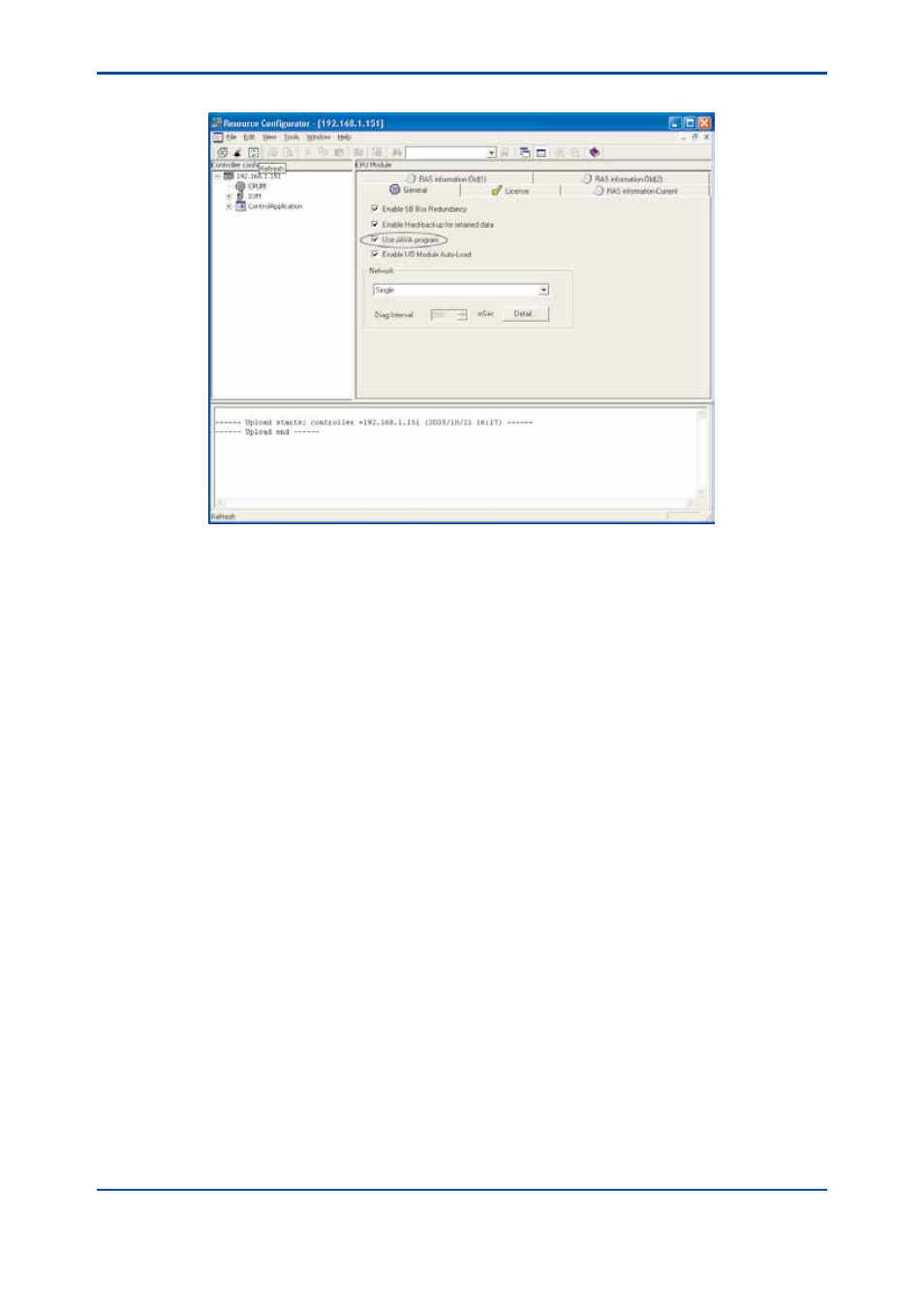

(3) To enable Java, select General tab and click Use Java program.
(4) Setting the network
Specify the Ethernet connection for ASGW if it is single or duplex.
Ethernet of ASGW has dual or single type and dual type has duplex and separated mode.
After completing the above 3 items, download the information by [File] - [Download].
Reboot the ASGW by pressing Reset button or Web browser. After starting ASGW confirm
that the IP address is correct by ping command of PC.
(5) Allocating applications to the DO terminal (only when #DO function is used)
When the #DO setting is used to output alarm information to the DO terminal, the DO vari-
able called device label in the ASGW application must be mapped to the I/O terminal by
using the resource configurator. Immediately after the initial installation, the device label is
not related to the I/O terminal.
The DO output definition is matched to the default factory setting of the device label of the
system card. If none of the default settings are changed, this procedure is not needed.
(6) Downloading settings
Download the five settings above to ASGW.
Resource configurator: [File] - [Download]
After finishing, reboot ASGW. Use the ping command from the PC to confirm that the IP ad-
dress has been set correctly.
(7) Setting the serial port
In the case of Modbus RTU, the communication parameters should be adjusted to a con-
nected device.
Refer to 4.3.2 Modification of serial port setting.
