Notice
Be aware that the Digital Electronics Corporation shall not be held liable for any
real or estimated damages or losses, or third party claims resulting from the use
of this product.
All Company/Manufacturer names used in this installation guide are the registered
trademarks of those companies.
Connection Information
The wired Terminal Block Conversion Adapter will be connected to Display's Serial
Interface (COM).
If you use the plug-type serial interface on your Display, be sure to use Pro-face's
COM Port Conversion Adapter (CA3-ADPCOM-01)(sold separately).
• Digital's Terminal Block Conversion Adapter cannot be connected to
the Mitsubishi PLC 2Port Adapter (GP030-MD11-0). However, it can
be connected to Digital's Mitsubishi PLC A, QnA, FX Series 2Port
Adapter II (GP070-MD11).

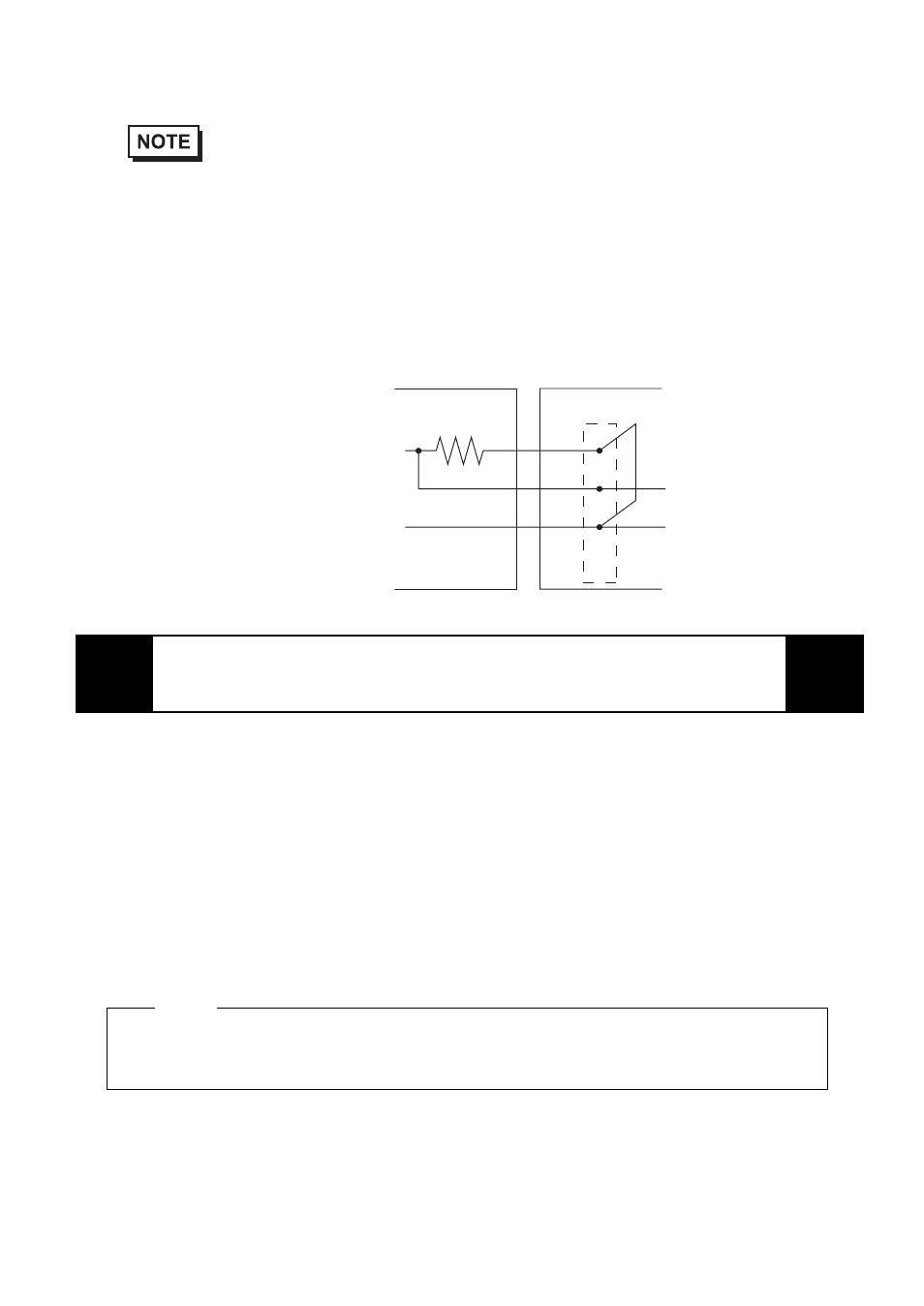

• Display's serial interface (COM) has a termination resistance.
When termination resistance is needed, shorting the terminal block
adaptor's TRM and RDB wires inserts 100
Ω of resistance between RDA
and RDB.
100
Ω 1/2W
TRM
RDA
RDB
Terminal Block B
Display(COM)
Terminal Block
Conversion Adapter
