5. The Configuration Editor dialog box appears (see Figure 3). This dialog box allows
you to tailor your MAP Family Operator Interface Terminal to your PLC. To accept
the default values, choose the Done button.
6. You are now back in the MAPware 100 dialog box. Type an appropriate message into
the Message text box (see Figure 4).
7. In the General Options group box, select the Start Up Message check box.
8. From the File menu, choose Save As.
MAPware 100 User's Guide
5
1010-0089, REV00

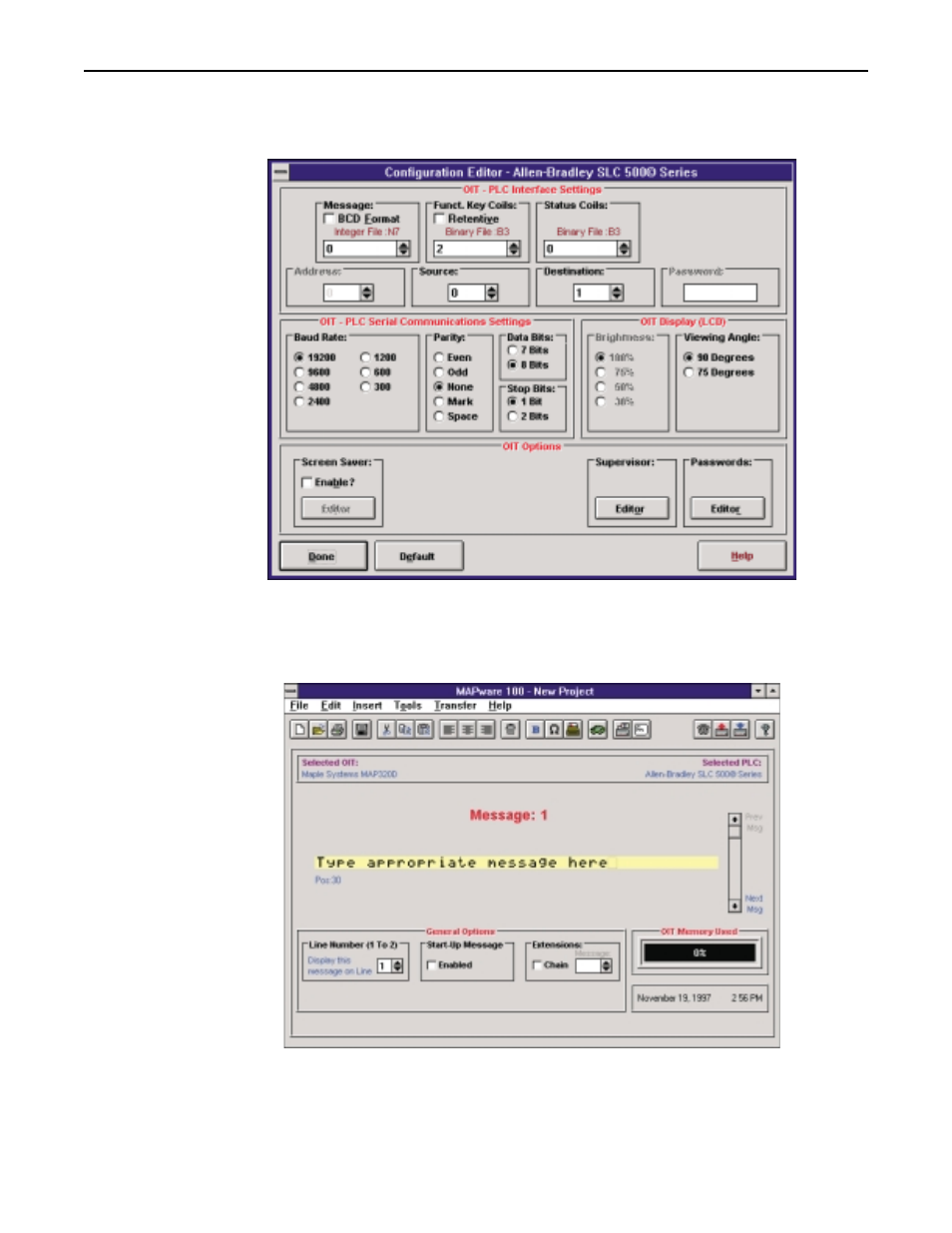

Figure 3 Configuration Editor Dialog Box
Figure 4 Message Text Box in MAPware 100 Dialog Box
