Register Monitor Editor
The Register Monitor Editor button is the shortcut for the Insert/PLC Register Monitor menu
item. Register monitors are objects that are placed on the message and represent registers or
coils within the PLC that are read and updated in real-time. Up to 10 register monitors may be
placed on each message. Everything about the register monitor format may be adjusted, from

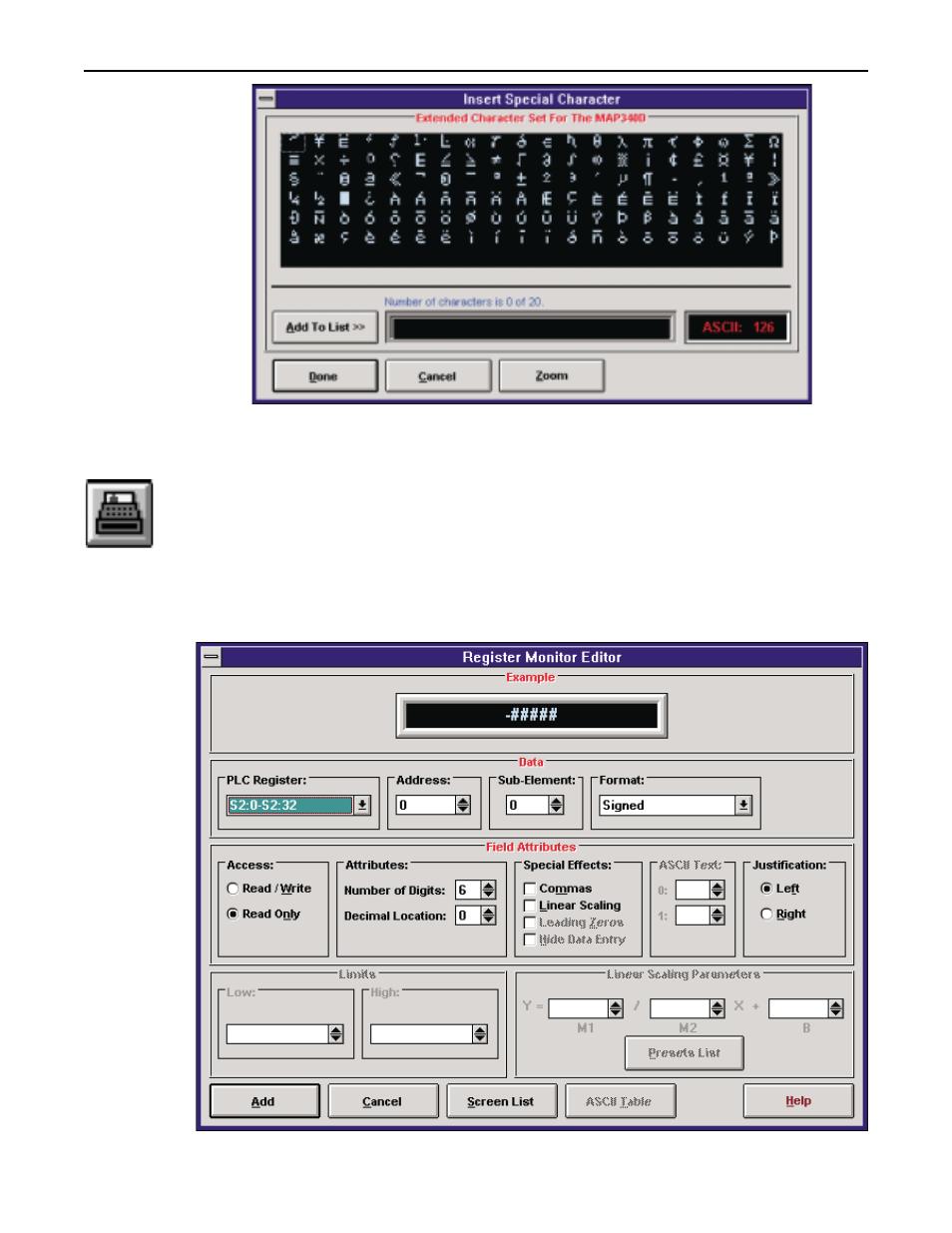

its width to the type of data presented on the message. Clicking on the Register Monitor
Editor button opens the following window:
