3. Power is not being supplied to the PLC. Check power supply and cabling to ensure a
successful power connection.

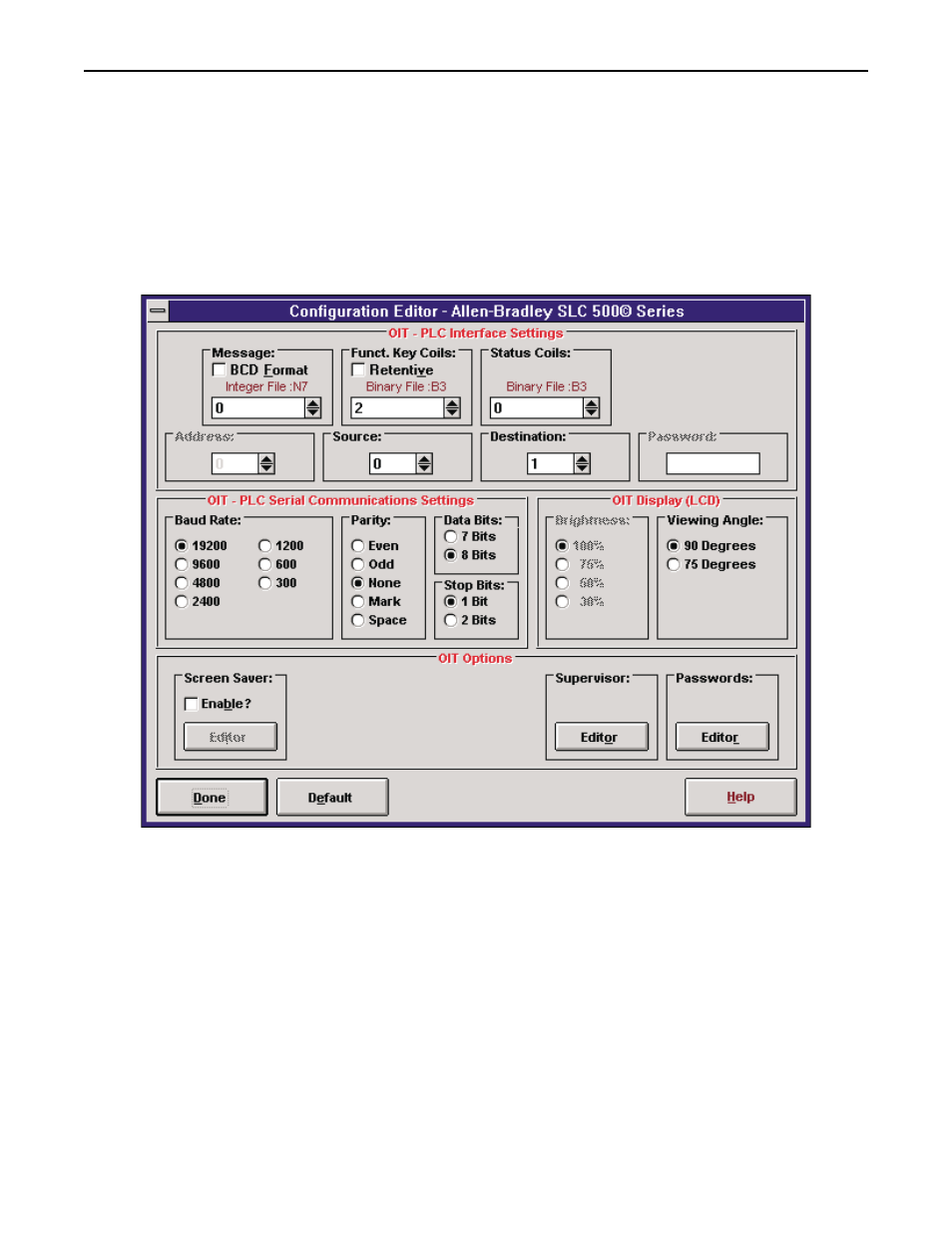

4. The default values in the Configuration Editor may not be appropriate for the
requirements of the PLC you are using. The default values are designed to work with the
chosen PLC in most cases, but may not work in all cases, especially if ladder logic values
have been changed drastically. Adjust the Configuration Editor parameters and resend the
project to the PLC. If this does not work, refer to the appropriate Maple Systems PLC
Protocol Guide for more information or contact Maple Systems Technical Support at
425-486-4477.
