PIcon II Operation
Rev 1.0 January 2014 6
OPERATION
Introduction
In Operation Section, all functions available to the operator of the PIcon II are outlined. Table:
Key Functions on the following page provides brief descriptions of key functions. Also, refer to

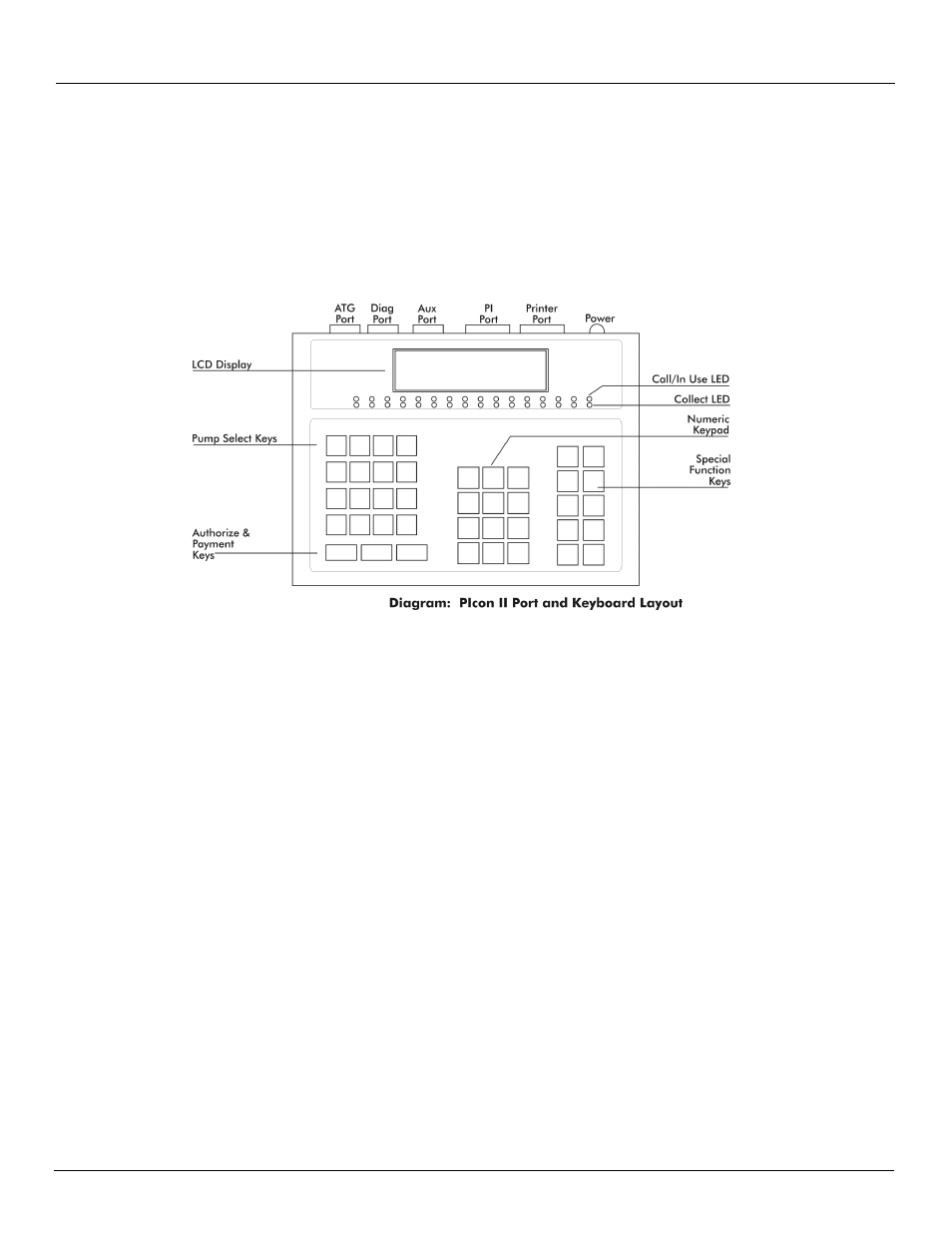

Diagram: PIcon II Port and Keyboard Layout, below, for general locations of various keys,
indicators and display.
There are two types of operations for the operator:
• Dispenser control — Initiated by pressing the appropriate pump select key, followed by
the keys corresponding to the command for the PIcon II to make upon that dispenser.
• Select functions — Provide the operator access to the time and date, operator shift report,
shift change, and console deactivation functions.
