AFL2-17A/AB-H61

P a g e 64

5.13.3 S ta n d Mo u n tin g

To mount the AFL2-17A/AB-H61 using the stand mounting kit, please follow the steps

below.

S te p 1:

Locate the screw holes on the rear of the AFL2-17A/AB-H61. This is where the

bracket will be attached. (Figure 5-20)

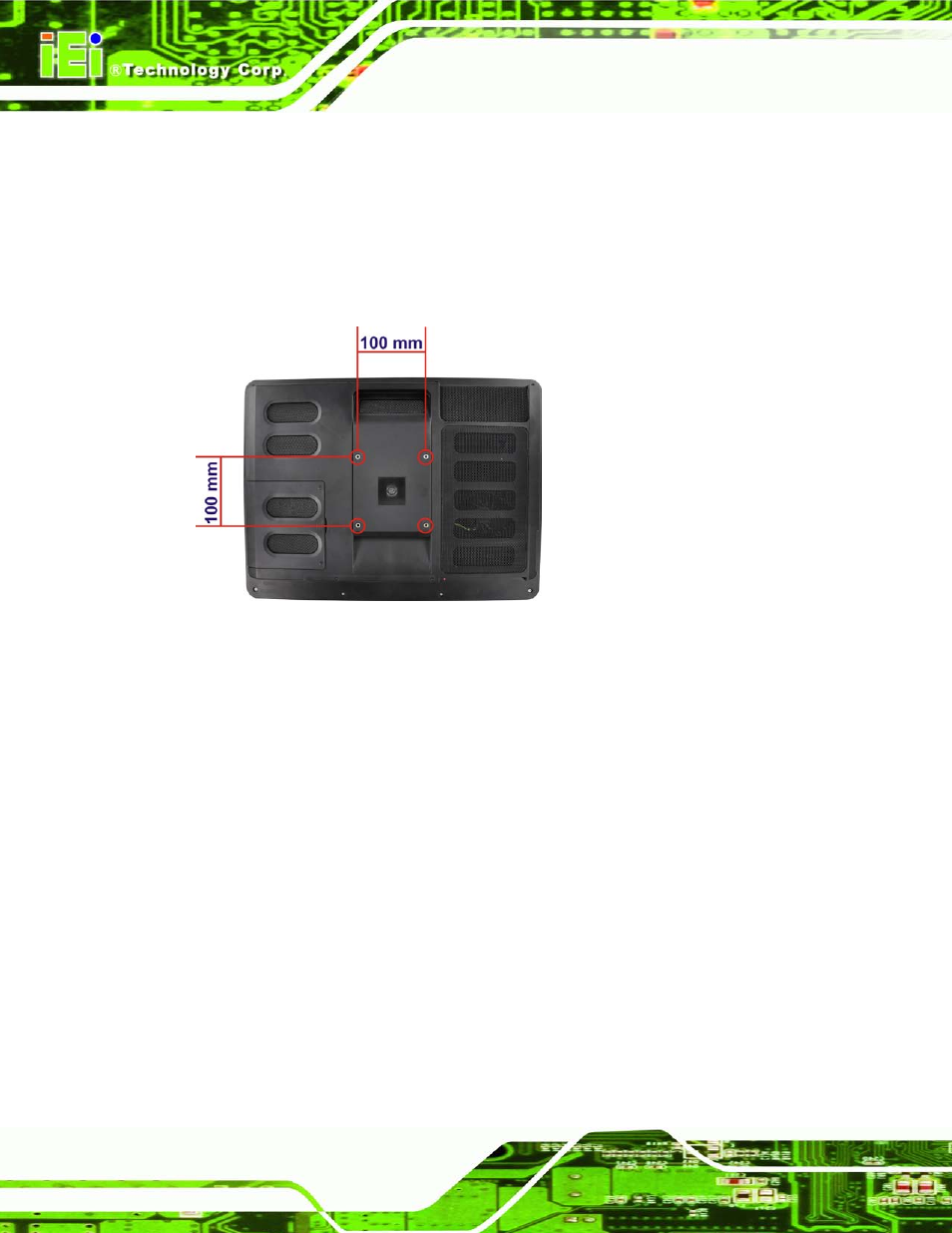

Figure 5-20: Mounting screw location

S te p 2:

Align the bracket with the screw holes.

S te p 3:

To secure the bracket to the AFL2-17A/AB-H61, insert the retention screws into

the screw holes and tighten them.

S te p 0:

5.13.4 Arm Mo u n tin g

The AFL2-17A/AB-H61 is VESA (Video Electronics Standards Association) compliant and

can be mounted on an arm with a 100mm interface pad. To mount the AFL2-17A/AB-H61

on an arm, please follow the steps below.

S te p 1:

The arm is a separately purchased item. Please correctly mount the arm onto

the surface it uses as a base. To do this, refer to the installation documentation

that came with the mounting arm.
