AFL2-17A/AB-H61
P a g e 83
6.2.4 Blu e to o th Co n n e c to r
CN La b e l: BLUETOOTH1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 6-6
CN P in o u ts : See Table 6-5
The Bluetooth connector connects to a Bluetooth module.

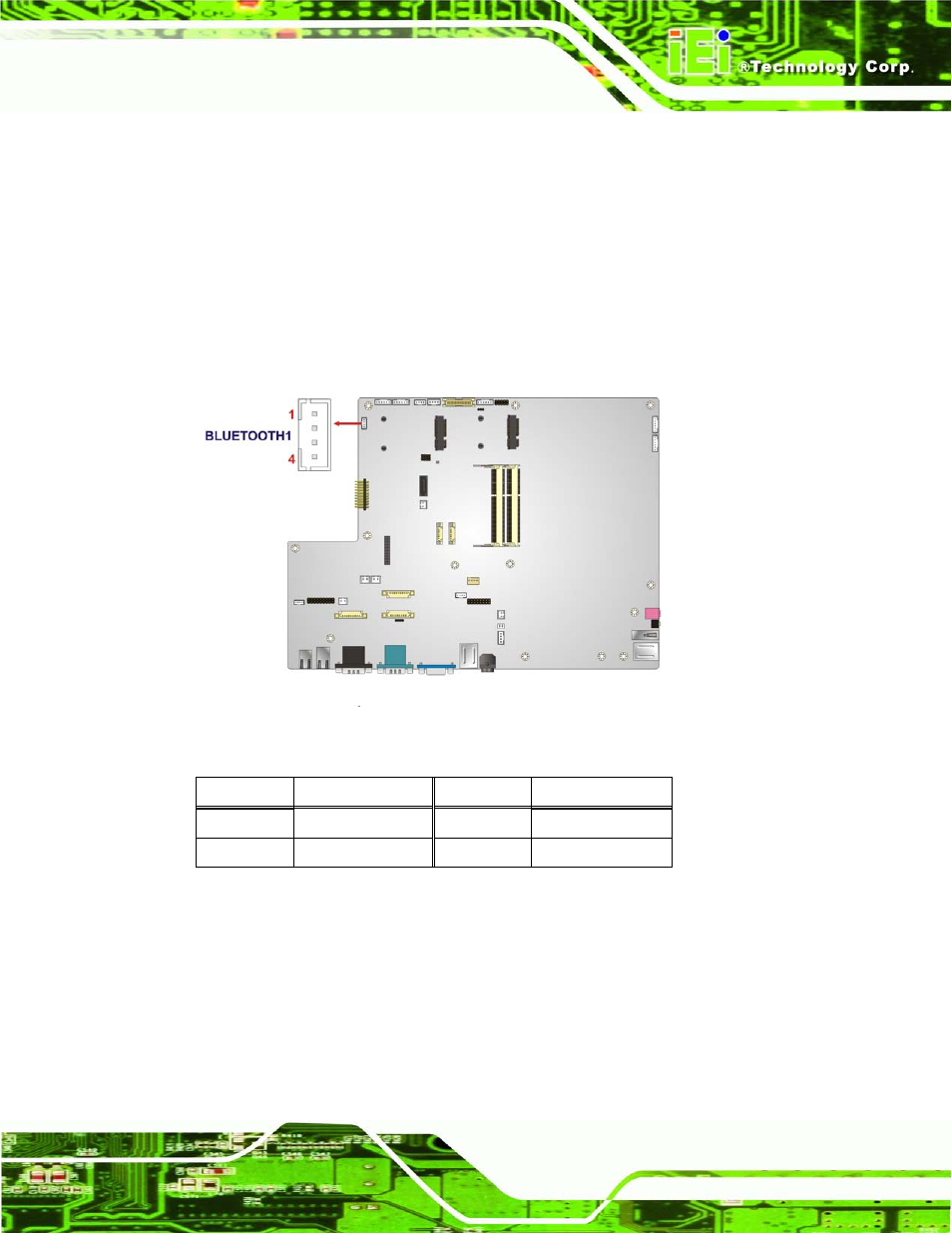

Figure 6-6: Bluetooth Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 -DATA9
3 +DATA9 4 GND
Table 6-5: Bluetooth Connector Pinouts
6.2.5 CP U Fa n Co n n e c to r
CN La b e l: CP U_FAN1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 6-7
