AFL2-17A/AB-H61

P a g e 62

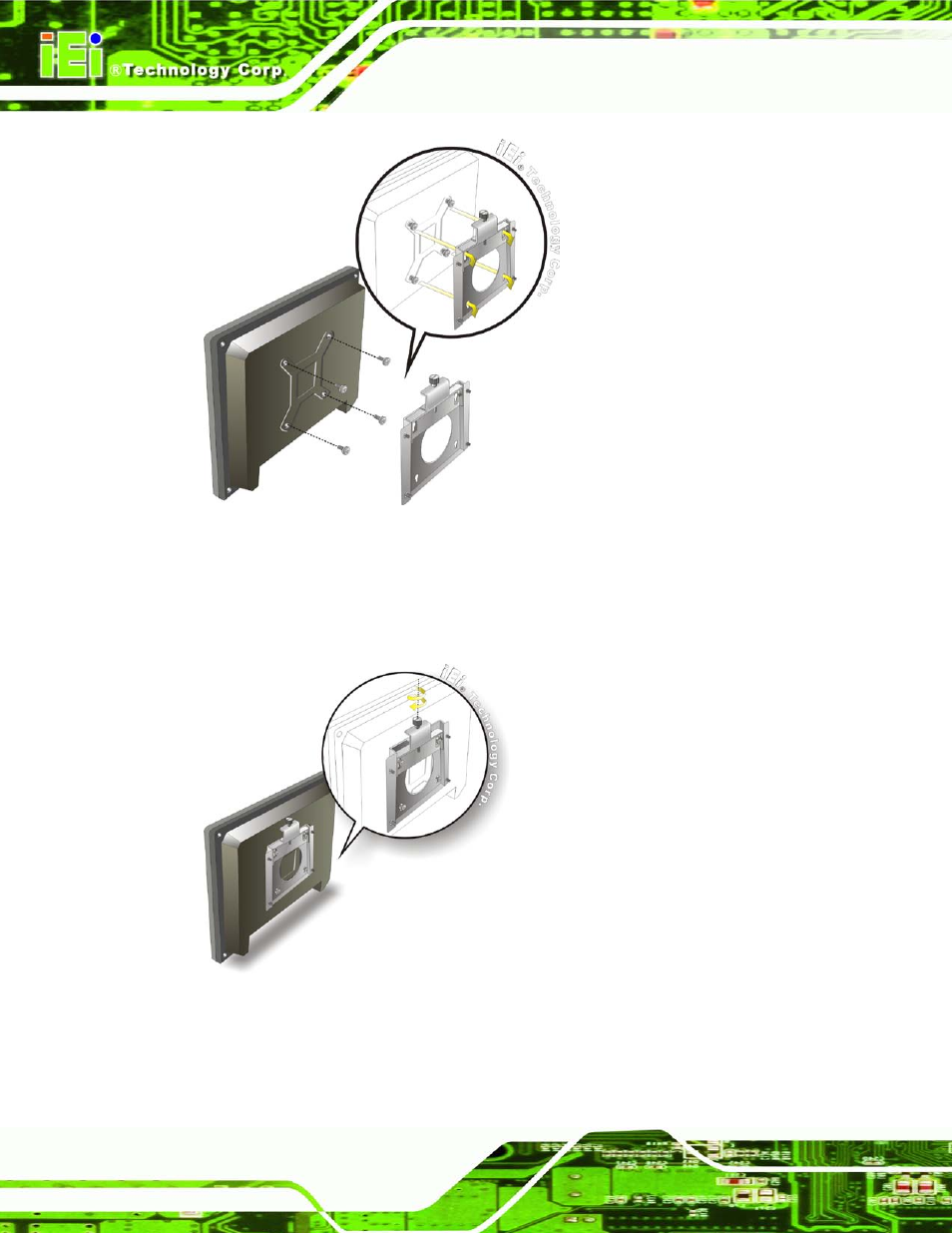

Figure 5-17: Chassis Support Screws

S te p 9:

Secure the panel PC by fastening the retention screw of the wall-mounting

bracket. (Figure 5-18).

S te p 0:

Figure 5-18: Secure the Panel PC
