AFL2-17A/AB-H61
P a g e 52

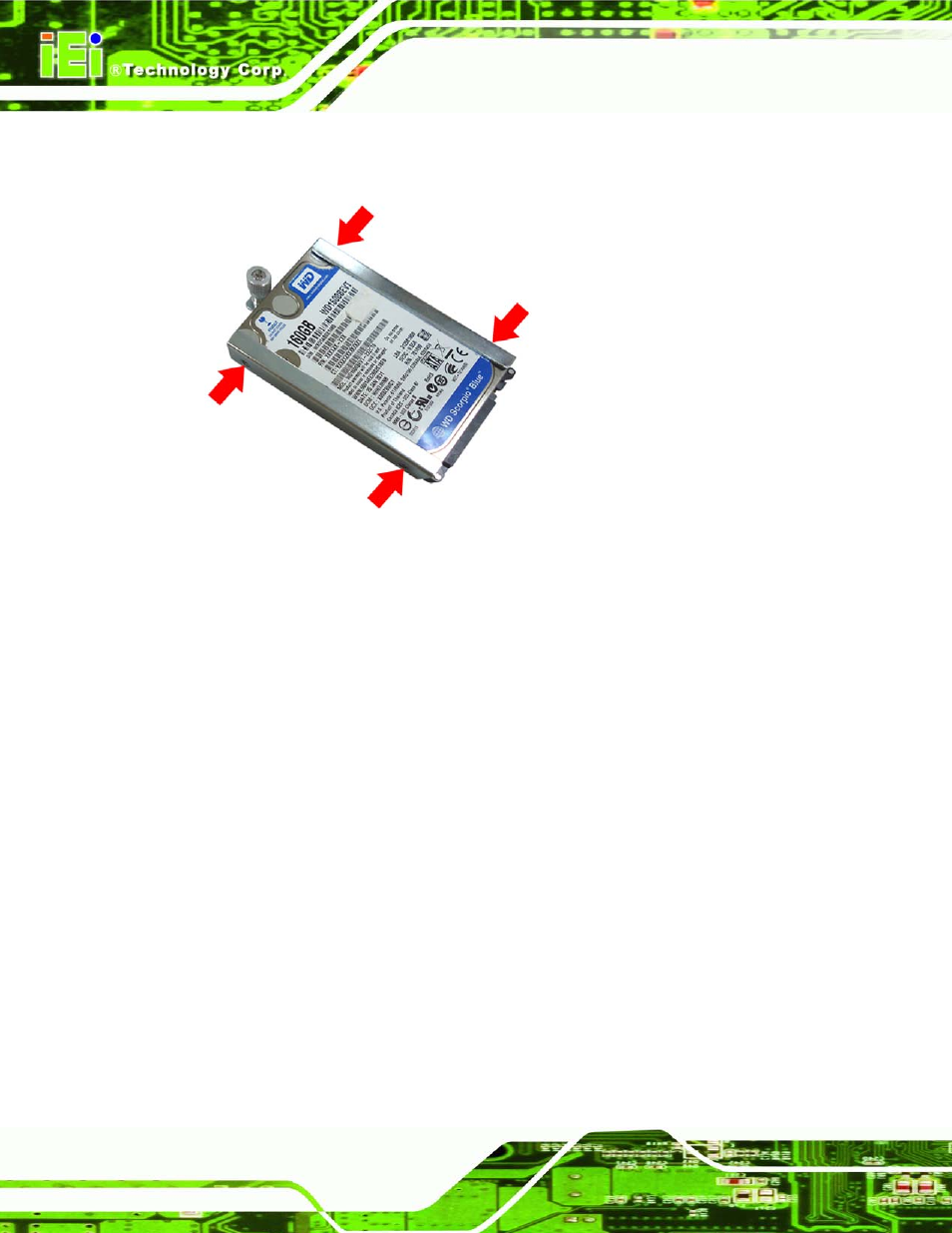

S te p 6: Secure the HDD to the bracket using four (4) retention screws (two screws on
each side) (Figure 5-5).
Figure 5-5: Securing the HDD
S te p 7: Slide the HDD module back into the device.
S te p 8: Tighten the captive screw.
S te p 9: Replace the HDD cover and secure it using two (2) retention screws. S te p 0:
5.5 K-Typ e Te m p e ra tu re S e n s o r In s ta lla tio n
The AFL2-17A/AB-H61 has a K-type connector on the external peripheral interface panel.
The K-type connector is connected to a K-type temperature sensor cable. The K-type
temperature sensor cable can be found in the packing list. To connect a K-type
temperature sensor cable to the AFL2-17A/AB-H61, please follow the instructions below.
S te p 1: Locate the K-type connector. The location is shown in Chapter 1.
S te p 2: Align the connector. Align the K-type temperature sensor cable with the K-type
connector on the AFL2-17A/AB-H61 . Make sure the orientation of the connector
is correct.
