AFL2-17A/AB-H61

P a g e 5

1.2 Exte rn a l Ove rvie w

1.2.1 Fro n t P a n e l

The front side of the AFL2-17A/AB-H61 is a flat bezel panel TFT LCD screen surrounded

by a PC/ABS plastic frame. The LED light bars are for AFL2-17AB-H61 series only.

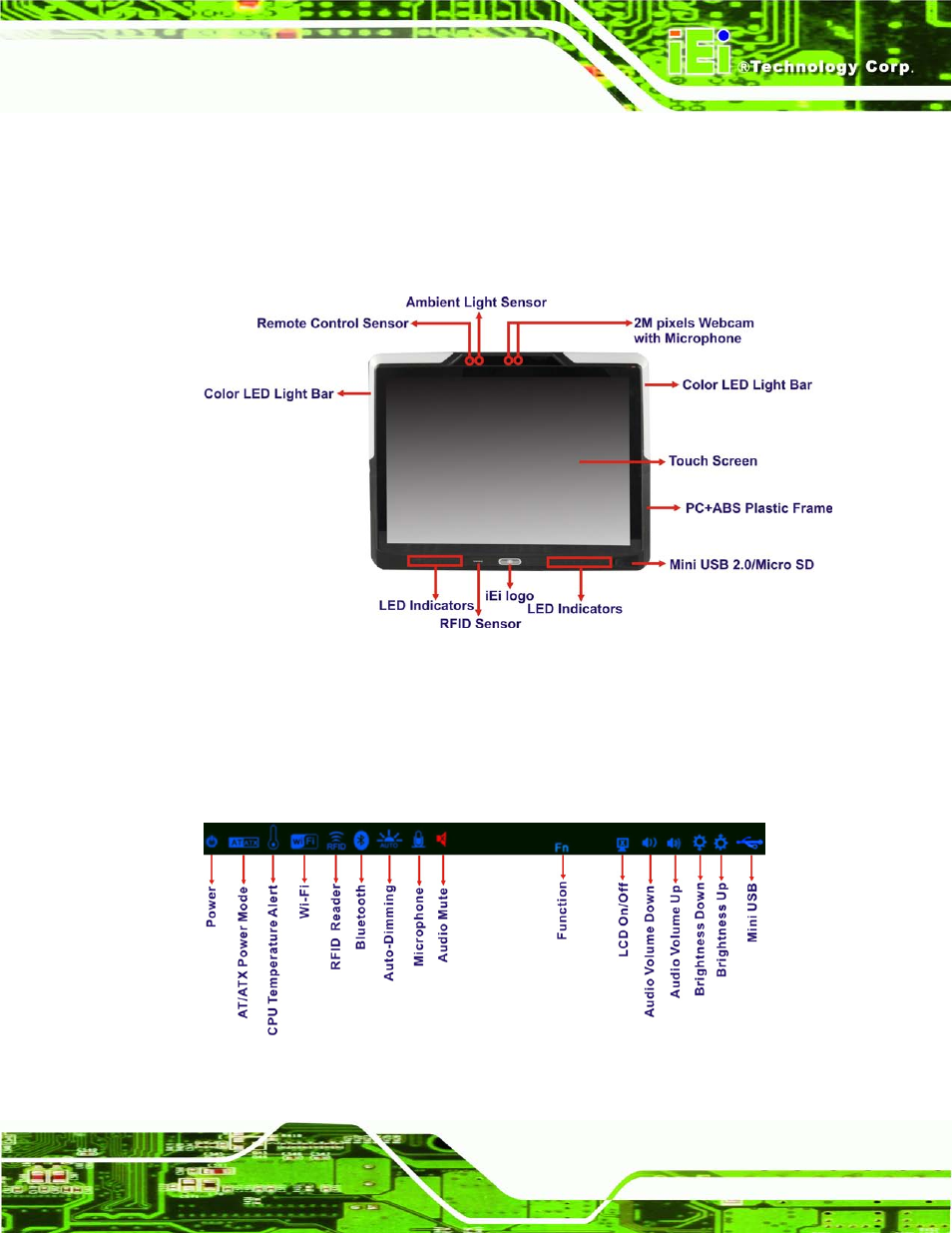

Figure 1-2: AFL2-17A/AB-H61 Front View

1.2.1.1 LED In d ic a to rs

There are sixteen LED indicator lights located along the front of the LCD screen (Figure

Figure 1-3: LED Indicators
