AFL2-17A/AB-H61
P a g e 81
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NC 2 VCC5DUAL
3 VCC5DUAL 4 IRRX
5 GROUND 6 AUTO_CLK
7 NC 8 AUTO_DATA
9 NC 10 GROUND
Table 6-2: Auto-dimming Connector Pinouts
6.2.2 Ba tte ry Co n n e c to r
CN La b e l: BAT2
CN Typ e : 2-pin wafer
CN Lo c a tio n : See Figure 6-4
CN P in o u ts : See Table 6-3
This is connected to the system battery. The battery provides power to the system clock to
retain the time when power is turned off.

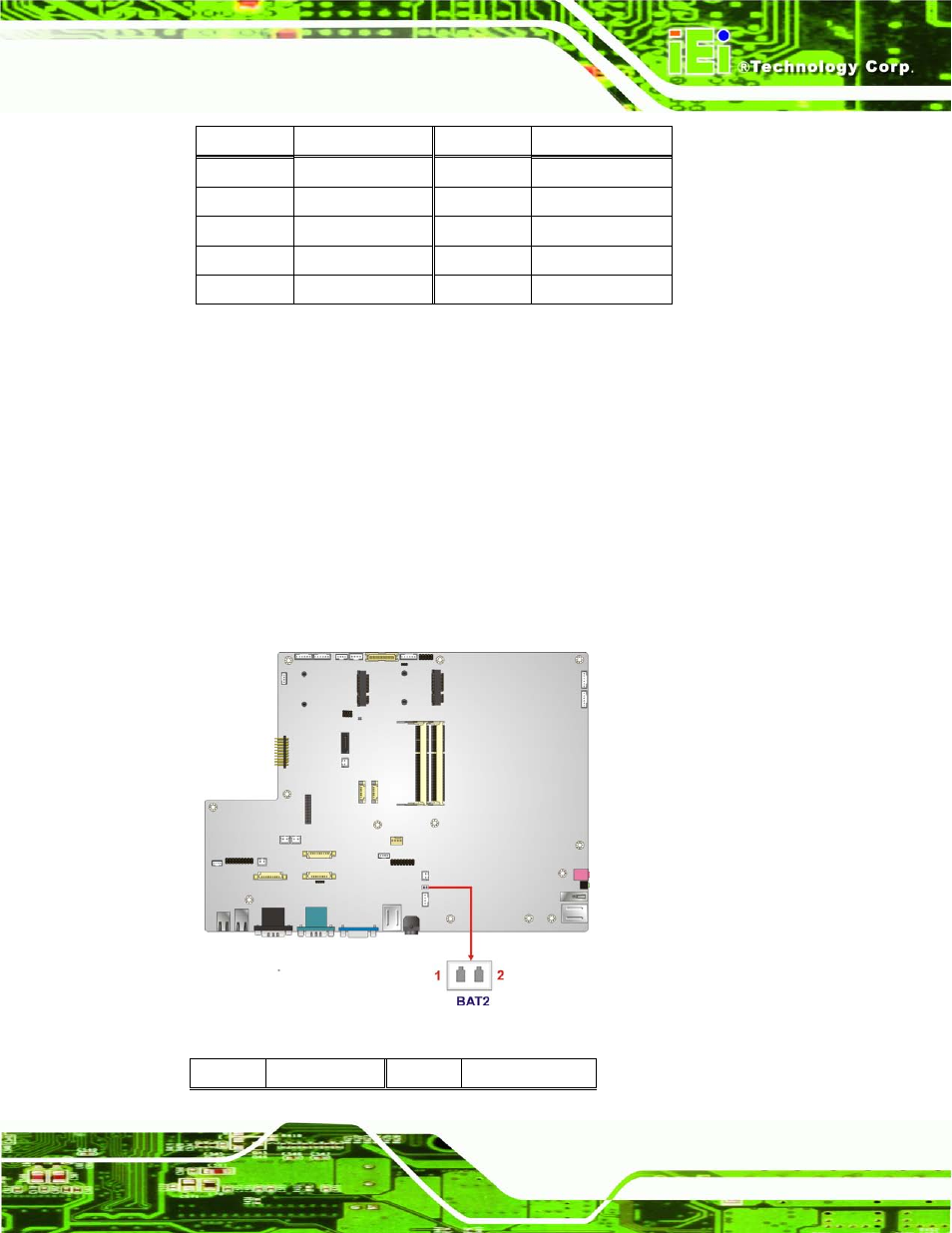

Figure 6-4: Battery Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
