AFL2-W21A/AB-H61

P a g e 54

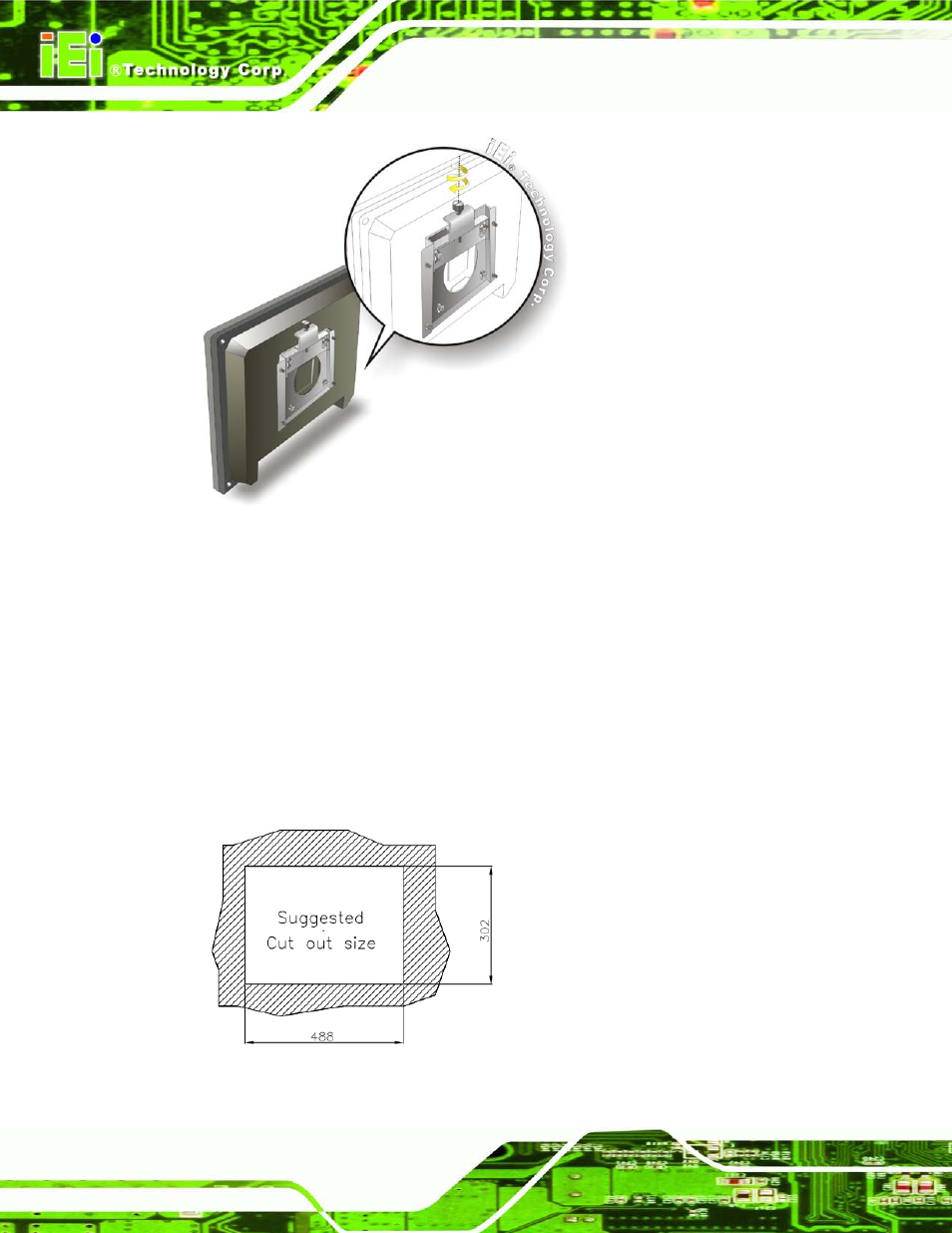

Figure 4-18: Secure the Panel PC

4.13.2 P a n e l Mo u n tin g

To mount the AFL2-W21A/AB-H61 flat bezel panel PC into a panel, please follow the

steps below.

S te p 1:

Select the position on the panel to mount the flat bezel panel PC.

S te p 2:

Cut out a section corresponding to the size shown below. The size must be

smaller than the outer edge.

Figure 4-19: Cutout Dimensions
