AFL2-W21A/AB-H61
P a g e 94
5.2.22 P o we r Bu tto n Co n n e c to r
CN La b e l: P W_BT1
CN Typ e : 2-pin wafer
CN Lo c a tio n : See Figure 5-26
CN P in o u ts : See Table 5-22
The power button connector connects to the power button on the bottom panel.

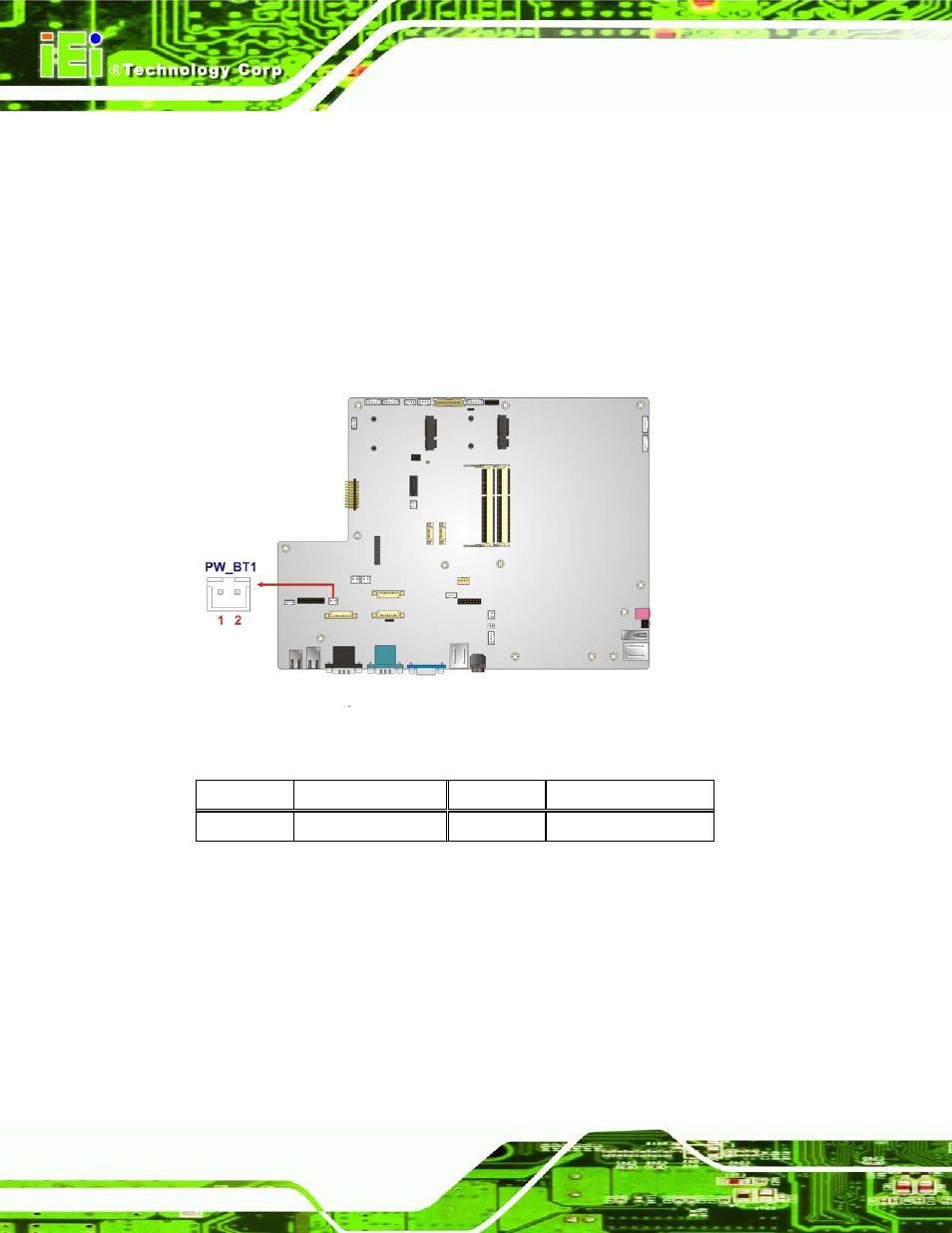

Figure 5-26: Power Button Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 EX_PWRBTSW- 2 GND
Table 5-22: Power Button Connector Pinouts
5.2.23 RFID Co n n e c to r
CN La b e l: RFID_US B1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 5-27
CN P in o u ts : See Table 5-23
