AFL2-W21A/AB-H61
P a g e 8
1.2.4 Le ft S id e P a n e l
The left side panel of the AFL2-W21A/AB-H61 has the following features (Figure 1-6):
 2 x Audio jacks (Line out, MIC)
 1 x RJ-45 LAN connector
 1 x USB 2.0 connector

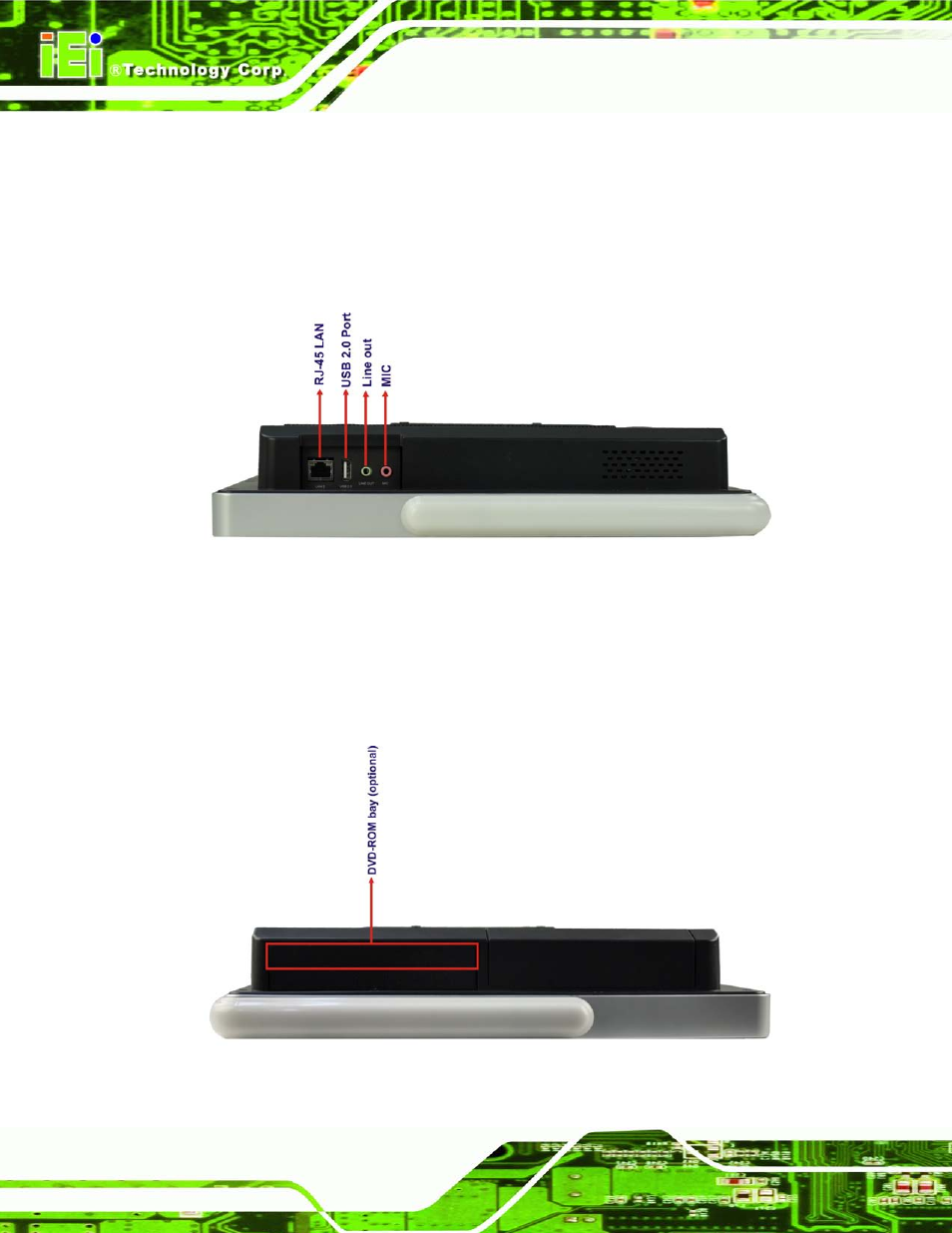

Figure 1-6: AFL2-W21A/AB-H61 Left Side Panel
1.2.5 Rig h t S id e P a n e l
The right side panel of the AFL2-W21A/AB-H61 provides access to the DVD-ROM bay
(optional) (Figure 1-7):
Figure 1-7: AFL2-W21A/AB-H61 Right Side Panel
