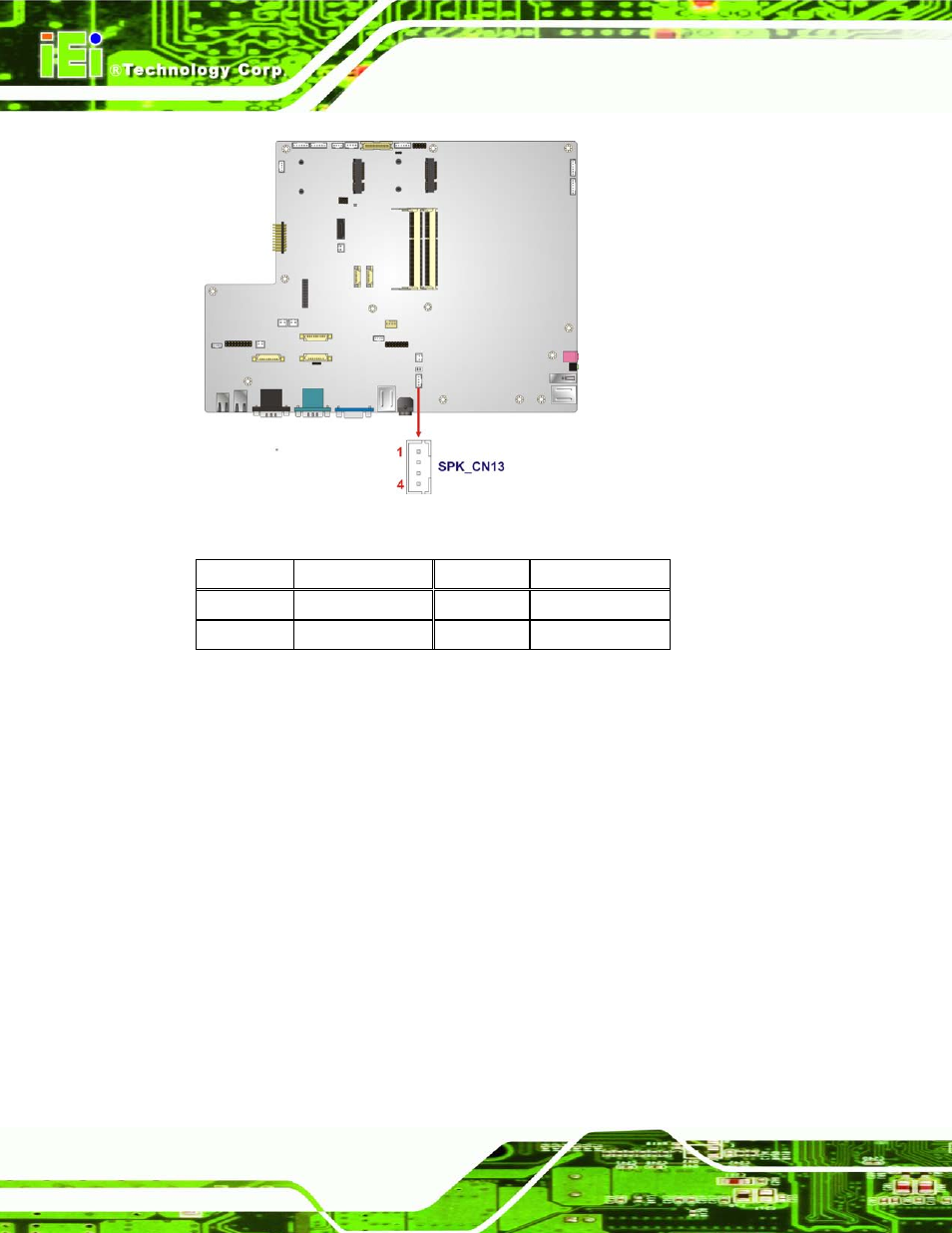

Figure 5-30: Speaker Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 SPK_L 2 Analog_GND
3 Analog_GND 4 SPK_R
Table 5-26: Speaker Connector Pinouts
5.2.27 To u c h p a n e l c o n n e c to r (5-wire re s is tive typ e )
CN La b e l: TS 1
CN Typ e : 9-pin wafer
CN Lo c a tio n : See Figure 5-31
CN P in o u ts : See Table 5-27
This connector is for a 5-wire resistive type touch screen connected to the board.
