UPC-12A/GM45 Panel PC
Page 37
Step 7: Reinstall the bottom panels . Make sure the bottom panels are properly
secured with the previously removed retention screws. Step 0:
4.7 Battery Installation
The UPC-12A/GM45 is come with a battery for system backup power. To install the
battery, follow the steps below.
Step 1: Remove the HDD/battery access panel . The HDD/battery access panel is
secured to the rear panel with eight retention screws. Remove the retention
screws to remove the HDD/battery access panel.

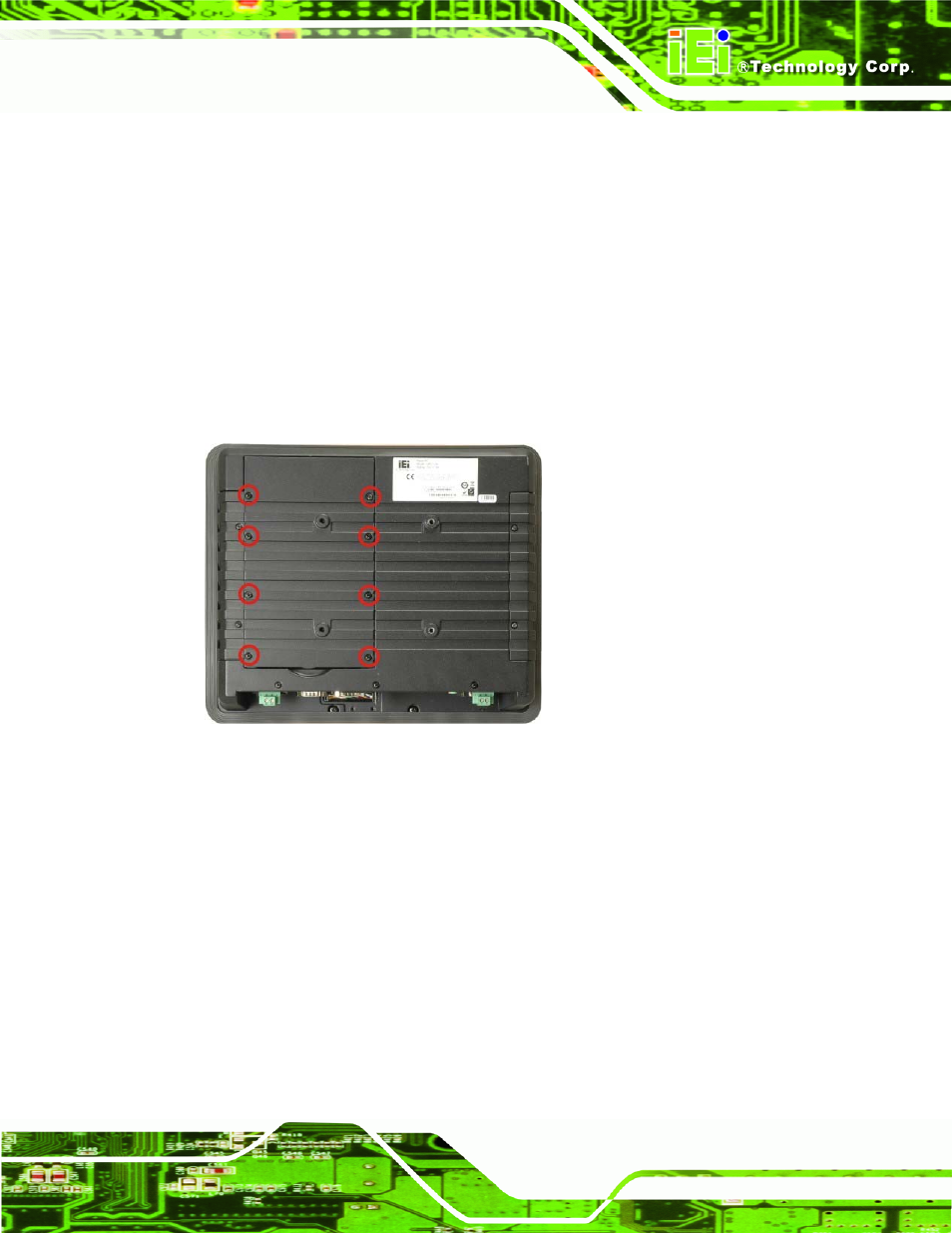

Figure 4-6: HDD/Battery Access Panel Retention Screws
Step 2: Connect the battery to the battery connector.
Step 3: Secure the battery to the chassis with two retention screws.
