UPC-12A/GM45 Panel PC
Page 110
Step 2:
In a remote computer, install the IEI REMOTE AP. Double click the setup.exe file
in the x:\AUPS\AUPS REMOTE AP directory. Follow the steps to install the IEI
REMOTE AP. After installation, launch the AP. If there is a problem to launch the
tool, execute the dotnetfxRedist20.exe first (dotnetfxRedist20.exe is located in
the same directory of the driver CD).
Step 3:
The IEI REMOTE AP tool appears (
630H630H630H630H629H629H
Figure 7-17
). All the UPC-12A/GM45 panel
PCs in the same subnet with this remote computer are shown in the list on the
right. Click the function buttons on the left to control the UPC-12A/GM45.

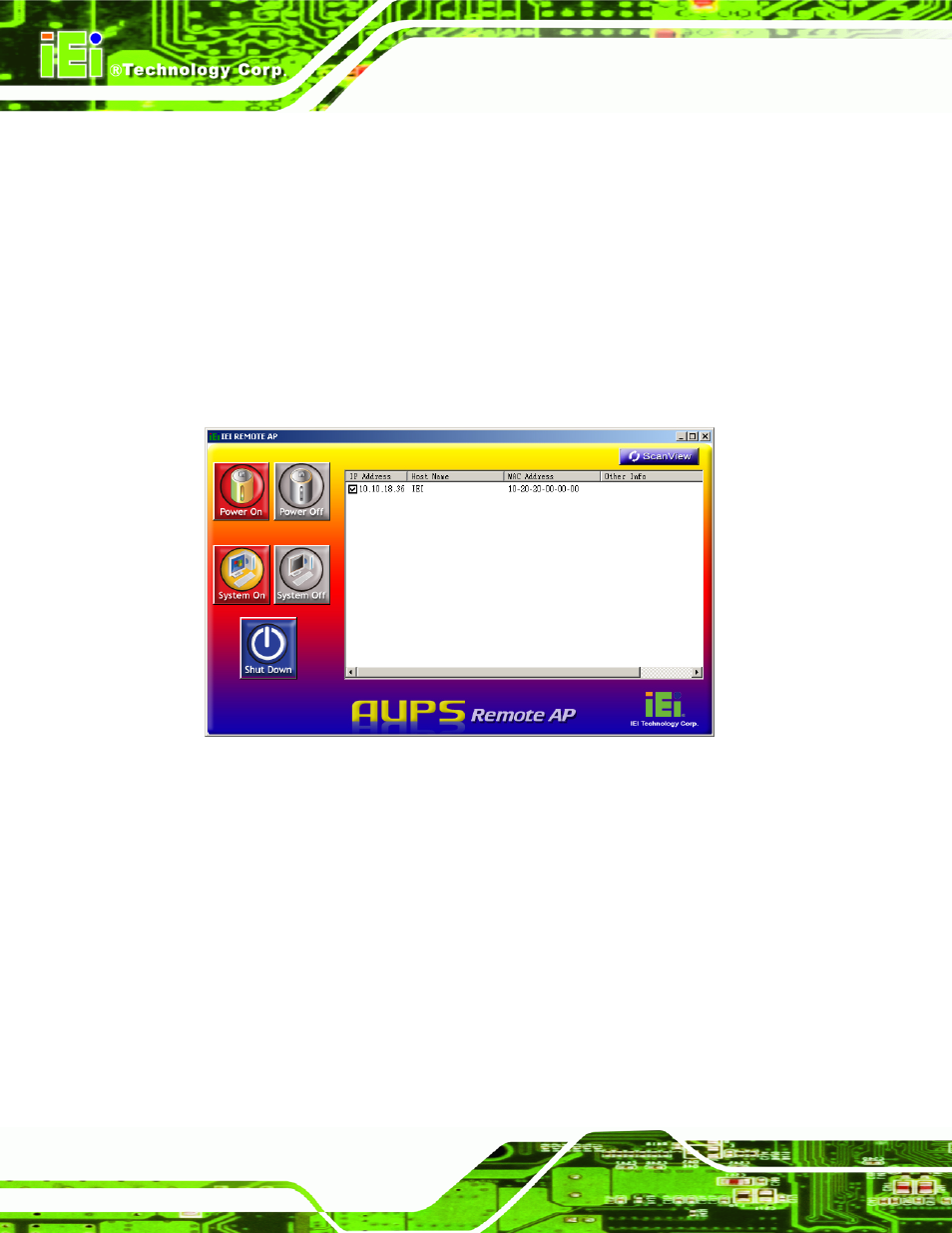

Figure 7-17: IEI REMOTE AP
Step 4:
To access the web interface for advanced monitoring and management, double
click the IP address of the connected UPC-12A/GM45 (
631H631H631H631H630H630H
Figure 7-18
).
