IMBA-9454G Motherboard

Page 42

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.

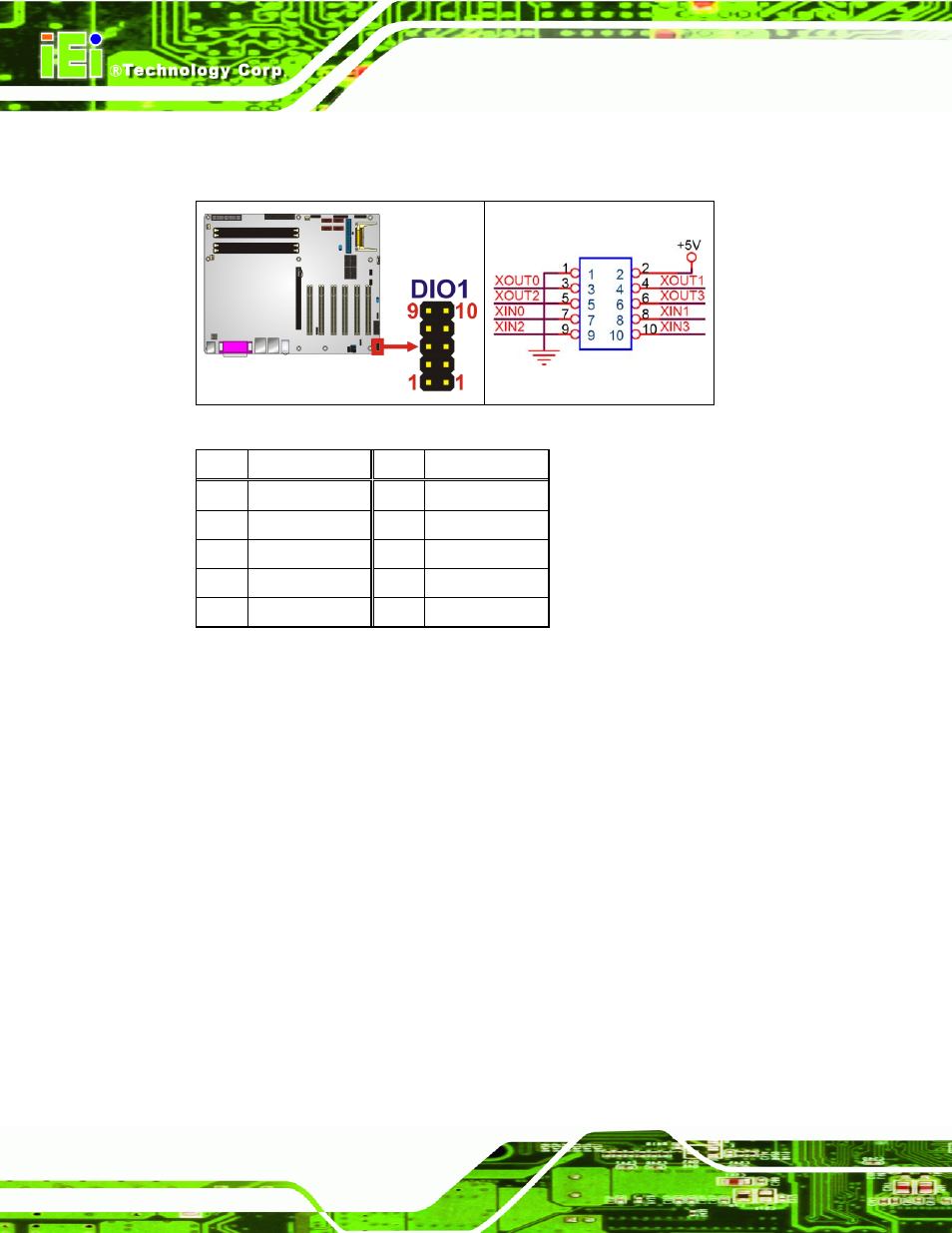

Figure 4-8: DIO Connector Locations

PIN DESCRIPTION PIN DESCRIPTION

1 GND

2 PWR

(+5V)

3 XOUT0

4 XOUT1

5 XOUT3

6 XOUT4

7 XIN0

8 XIN1

9 XIN2

XIN3

Table 4-9: DIO Connector Pinouts

4.2.8 Fan Connectors

CN Label:

FAN1, FAN2, FAN3

CN Type:

FAN1: 4-pin wafer connector

FAN1, FAN2: 3-pin wafer connector

CN Location:

See Figure 4-9

CN Pinouts:

See Error! Reference source not found.

The FAN1, FAN2 and FAN3 cooling fan connectors provide a 12V current to the cooling

fans. The connector has a "rotation" pin to get rotation signals from the fan and notify the

system so the system BIOS can recognize the fan speed. Please note that only certain

fans can issue the rotation signals.
