IMBA-9454G Motherboard
Page 3
1.1 Overview

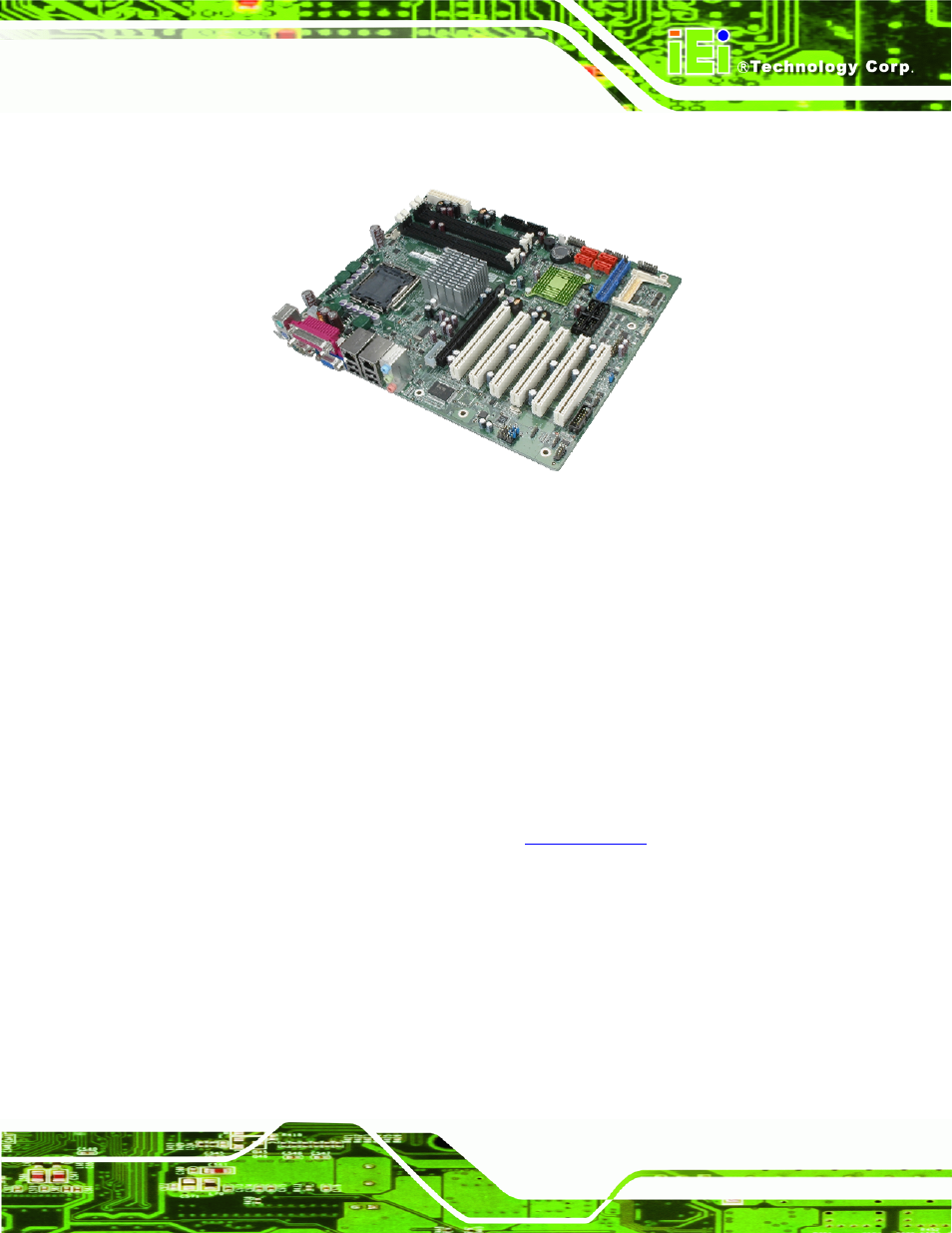

Figure 1-1: IMBA-9454G
The IMBA-9454G motherboard is an LGA775 Intel
®
Core™ 2 Duo/Intel
®
Pentium
®
4/Intel
®
Pentium
®
D/Intel
®
Celeron
®
D CPU platform with an Intel® 945G Express Chipset and
Intel® I/O Controller Hub 7 (ICH7) Southbridge. The IMBA-9454G has a maximum front
side bus (FSB) frequency of 1066MHz, supports up to 4GB of dual channel 677MHz
DDR2 RAM and comes with VGA, PS/2 keyboard/mouse, COM port, serial port and audio
interfaces as well as a Realtek RTL8111E LAN controller. The IMBA-9454G supports up
to four serial ATA (SATA 3Gb/s) hard disk drives and up to eight USB 2.0 devices.
Optional VGA or DVI Serial Digital Video Output (SDVO) cards, supporting dual display
and TPM modules offering advanced security features are available for the system and
can be purchased separately. If RAID support for the system is required, please contact
an IEI sales representative, or send an email to
1.1.1 Features
Some of the IMBA-9454G features are listed below.
RoHS
compliant
Support for the following CPUs:
o
LGA775 Intel
®
Core™ 2 Duo
o
LGA775 Intel
®
Pentium
®
4
o
LGA775 Intel
®
Pentium
®
D
