IMBA-9454G Motherboard

Page 37

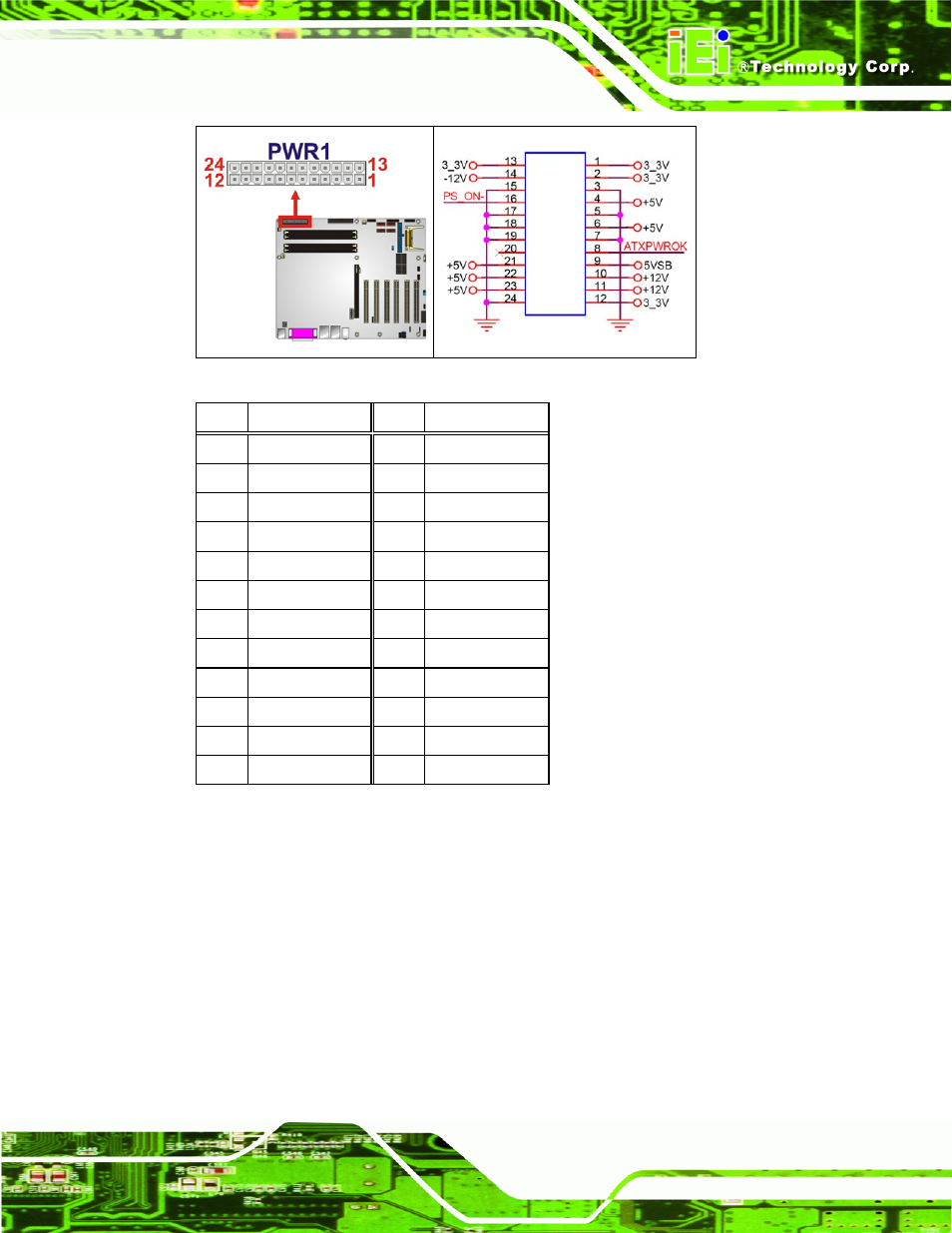

Figure 4-3: ATX Power Connector Location

PIN DESCRIPTION PIN DESCRIPTION

1 3.3V01

13

3.3V04

2 3.3V02

14

-12V

3 COM01

15

COM

4 +5V01

16

PS-ON

5 COM02

17

COM04

6 +5V02

18

COM05

7 COM03

19

COM06

8 PWR-OK

20

-5V

9 5VSB

21

+5V03

10 +12V01

22 +5V04

11 +12V02

23 +5V05

12 3.3V03

24 COM07

Table 4-4: ATX Power Connector Pinouts

4.2.3 Audio Connector (8-pin)

CN Label:

CN4

CN Type:

7-pin header

CN Location:

See

CN Pinouts:

See Table 4-5
