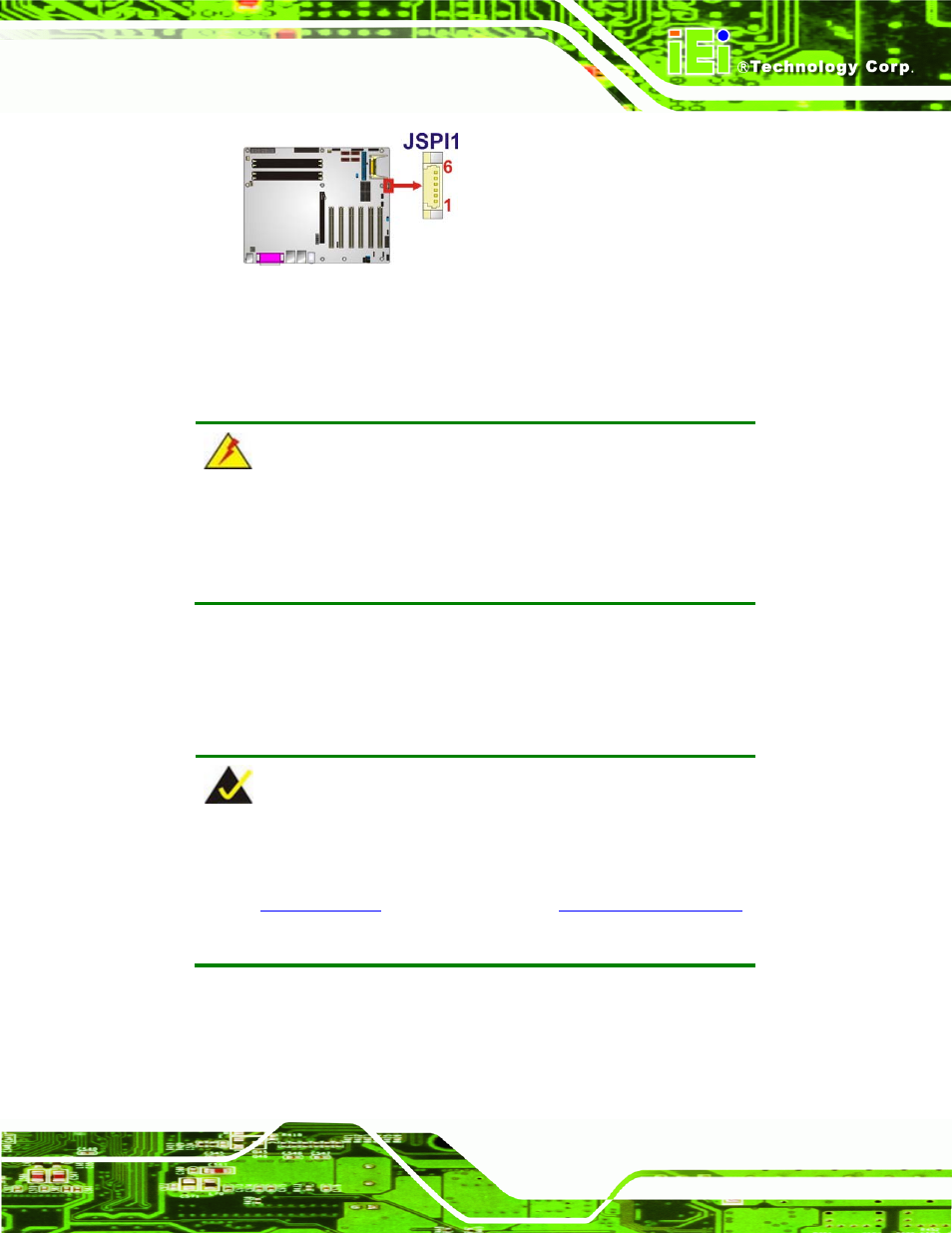

Figure 5-12: SPI Flash Jumper Location
5.5 Chassis Installation
5.5.1 Airflow
WARNING
Airflow is critical to the cooling of the CPU and other onboard
components. The chassis into which the IMBA-9454G is placed must
have air vents to allow proper airflow to cool the system components.
The IMBA-9454G must be installed in a chassis with ventilation holes on the sides
allowing airflow to travel over the heat sink surface. In a system with an individual power
supply unit, the cooling fan of a power supply can also help generate airflow over the
board surface.
NOTE
IEI has a wide range of chassis available. Please contact your
IMBA-9454G vendor, reseller or an IEI sales representative at
[email protected] or visit the IEI website ( http://www.ieiworld.com.tw )
to find out more about available chassis.
5.6 Internal Peripheral Device Connections
5.6.1 Peripheral Device Cables
The cables listed in Table 5-6 are shipped with the IMBA-9454G.
