Step 3: Connect the cable to an IDE device. Connect the two connectors on the other
side of the cable to one or two IDE devices. Make sure that pin 1 on the cable
corresponds to pin 1 on the connector Step 0:
5.6.3 Dual RS-232 Cable Connection
The dual RS-232 cable consists of two serial port connectors attached to a serial
communications cable that is then attached to two bracket mounted D-sub 9 male
connectors. To install the dual RS-232 cable, please follow the steps below.
Step 1: Locate the connector. The location of the RS-232 connector is shown in
Chapter 3.
Step 2: Insert the cable connector. Insert the connectors into the serial port box
headers. See Figure 5-14. A key on the front of the cable connectors ensures
the connectors can only be installed in one direction.

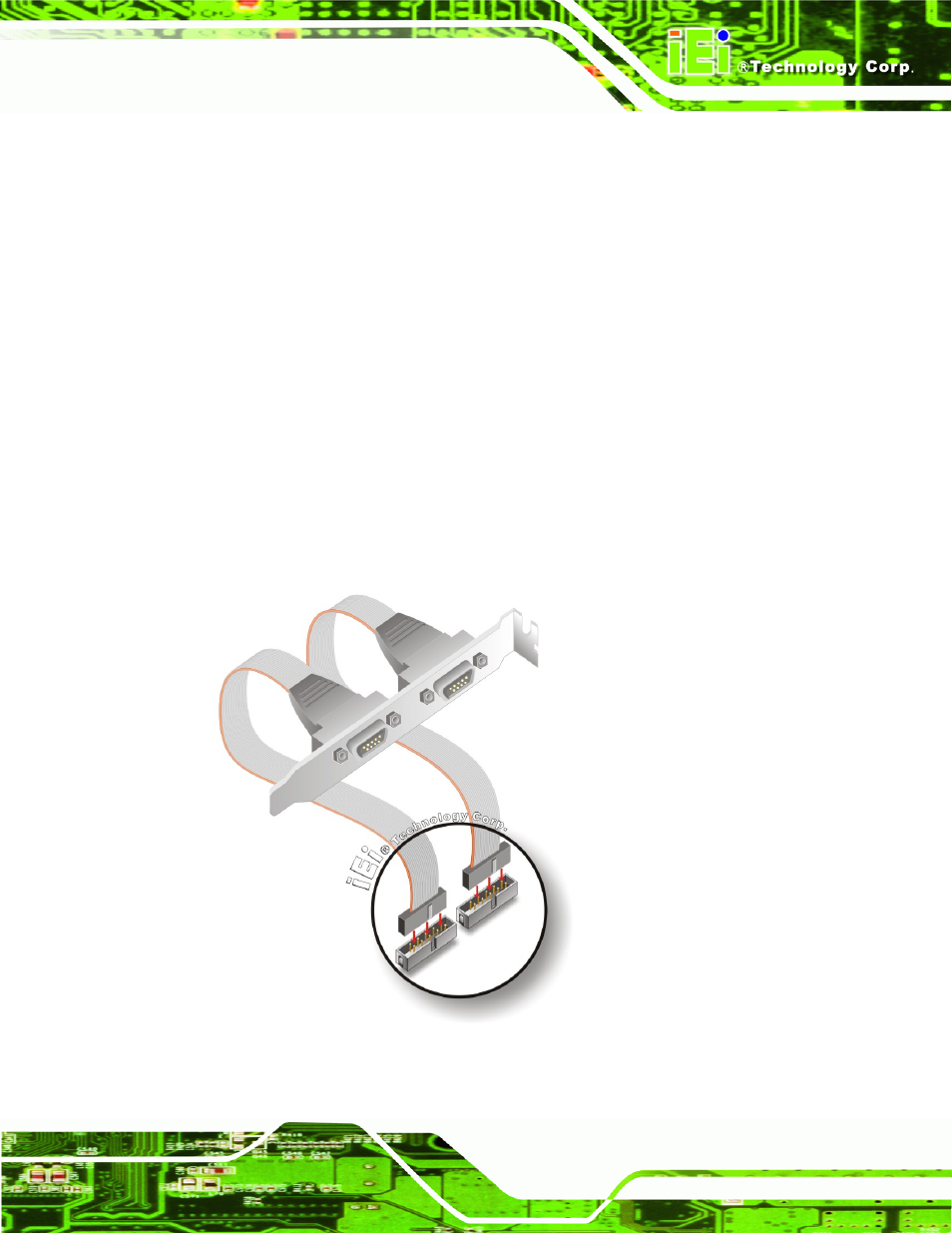

Figure 5-14: Dual RS-232 Cable Installation
