KINO-AQ870
P a g e 60

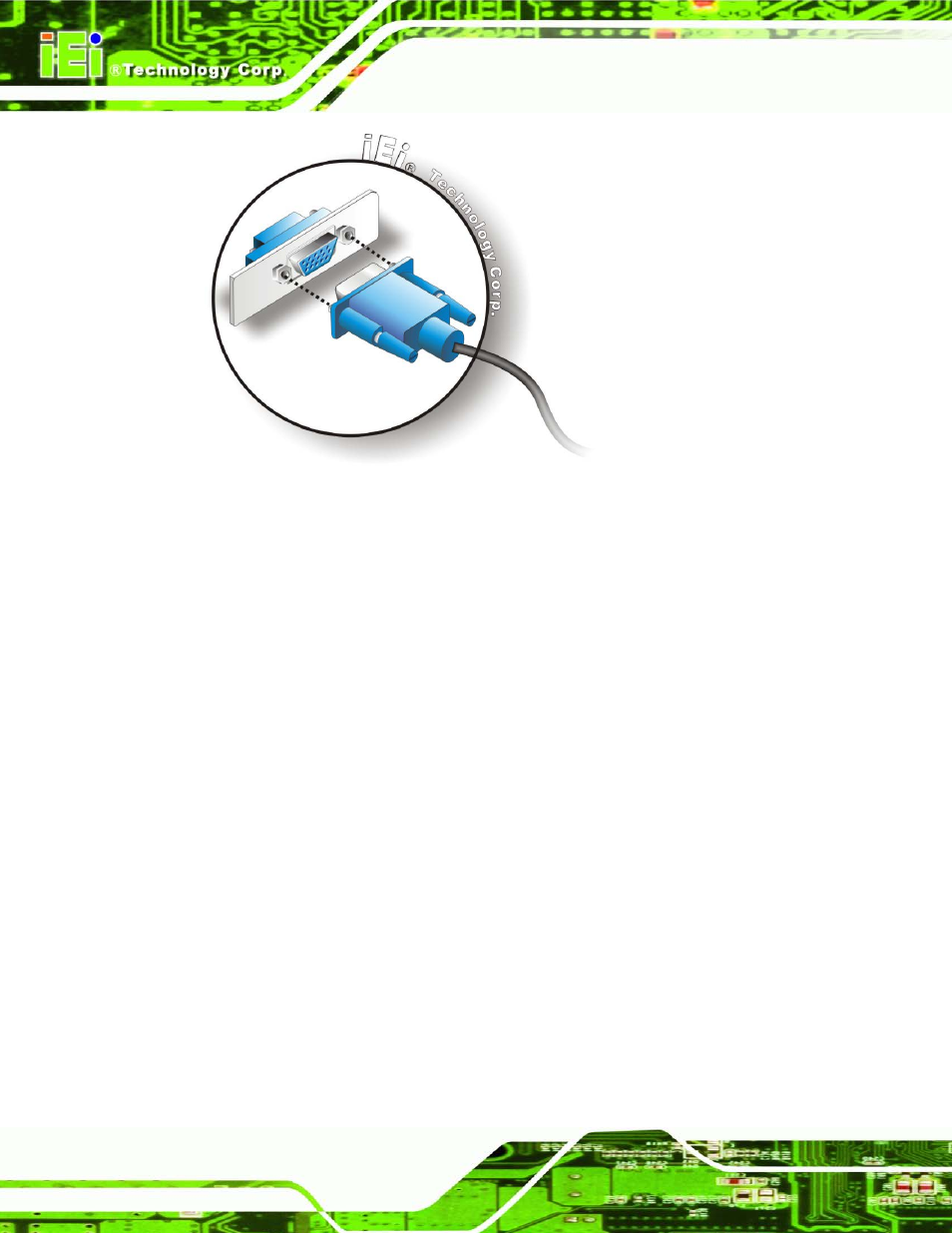

Figure 4-15: VGA Connector
S te p 4:
Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector.
4.6 In te l
®
AMT S e tu p P ro c e d u re
The KINO-AQ870 is featured with the Intel® Active Management Technology (AMT). To
enable the Intel® AMT function, follow the steps below.
S te p 1:
Make sure the memory socket is installed with one DDR3 DIMM.
S te p 2:
Connect an Ethernet cable to one of the RJ-45 connector LANs which supports
AMT.
S te p 3:
The AMI BIOS options regarding the Intel® ME or Intel® AMT must be enabled,
S te p 4:
Properly install the Intel® Management Engine Components drivers from the
iAMT Driver & Utility directory in the driver CD.
S te p 5:
Configure the Intel® Management Engine BIOS extension (MEBx). To get into
the Intel® MEBx settings, press
