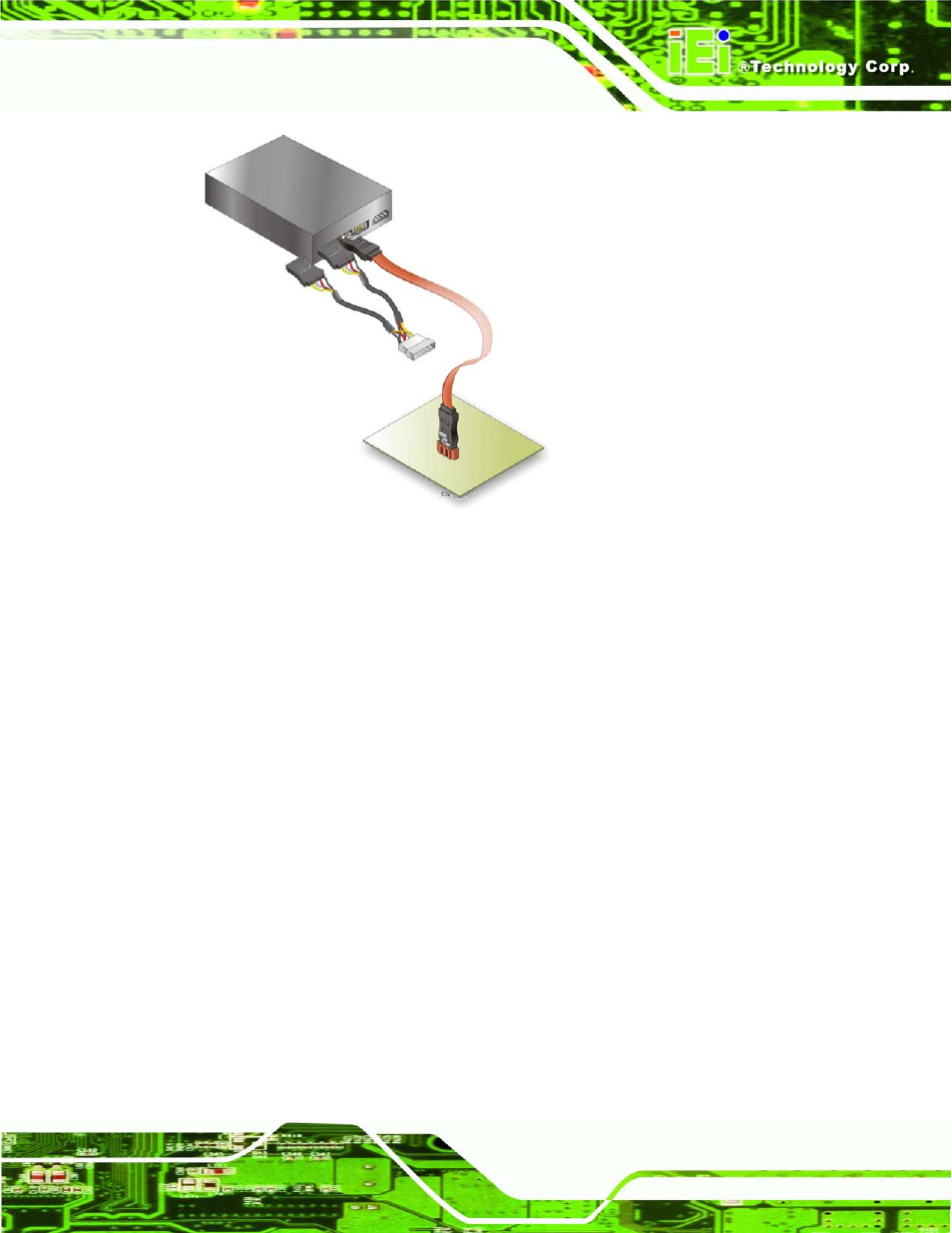

Figure 4-8: SATA Power Drive Connection
4.5 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c tio n
The following external peripheral devices can be connected to the external peripheral
interface connectors.
 Audio devices
 DVI devices
 PS/2 keyboard and mouse connector
 RJ-45 Ethernet cable connector
 Serial port devices
 USB devices
 VGA monitor
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding KINO-AQ870 external peripheral interface connector making
sure the pins are properly aligned.
