KINO-AQ870

P a g e 51

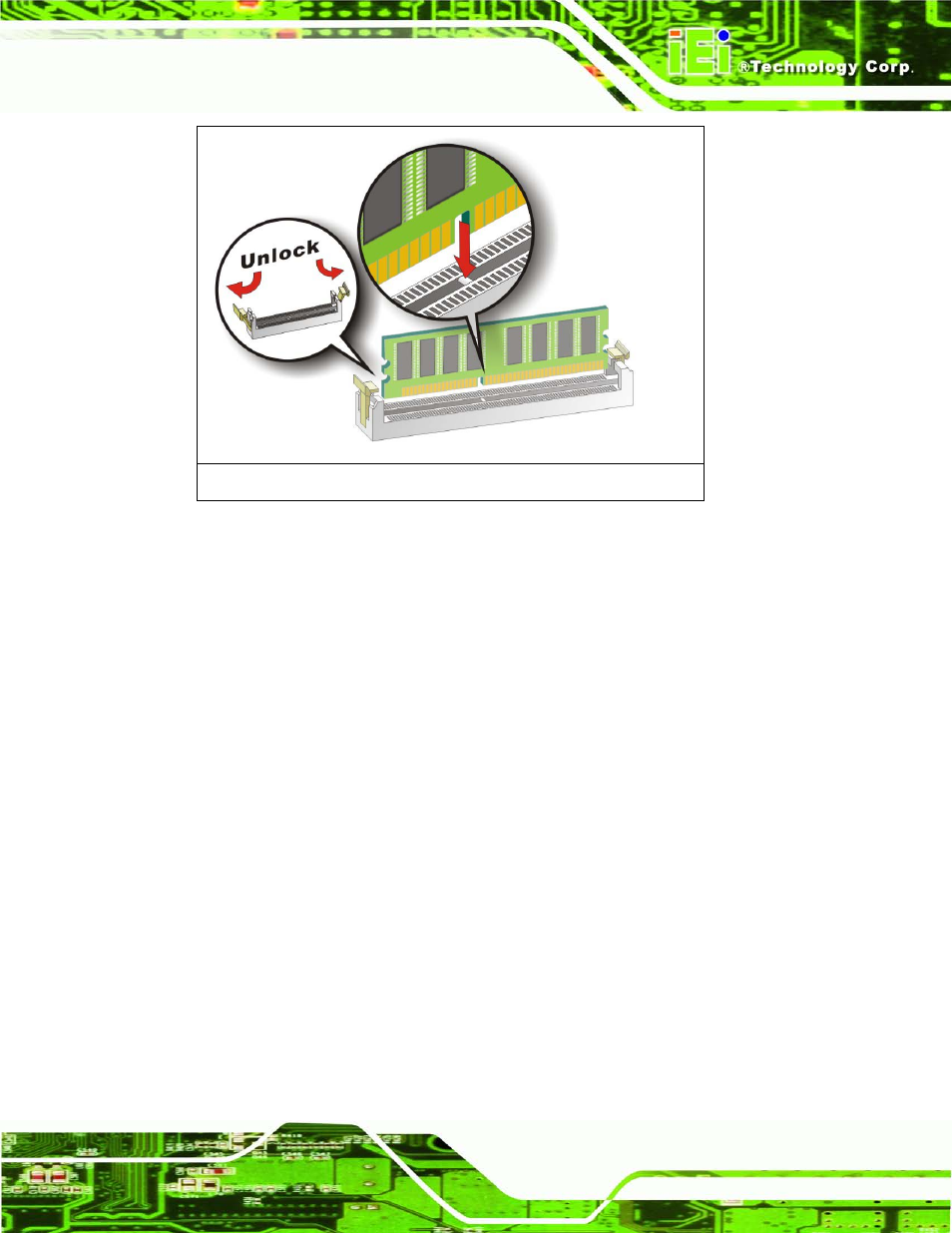

Figure 4-6: DIMM Installation

S te p 1:

Open the DIMM socket handles. Open the two handles outwards as far as they

S te p 2:

Align the DIMM with the socket. Align the DIMM so the notch on the memory

lines up with the notch on the memory socket. See Figure 4-6.

S te p 3:

Insert the DIMM. Once aligned, press down until the DIMM is properly seated.

Clip the two handles into place. See Figure 4-6.

S te p 4:

Remove a DIMM. To remove a DIMM, push both handles outwards. The

memory module is ejected by a mechanism in the socket.
