KINO-AQ870

P a g e 57

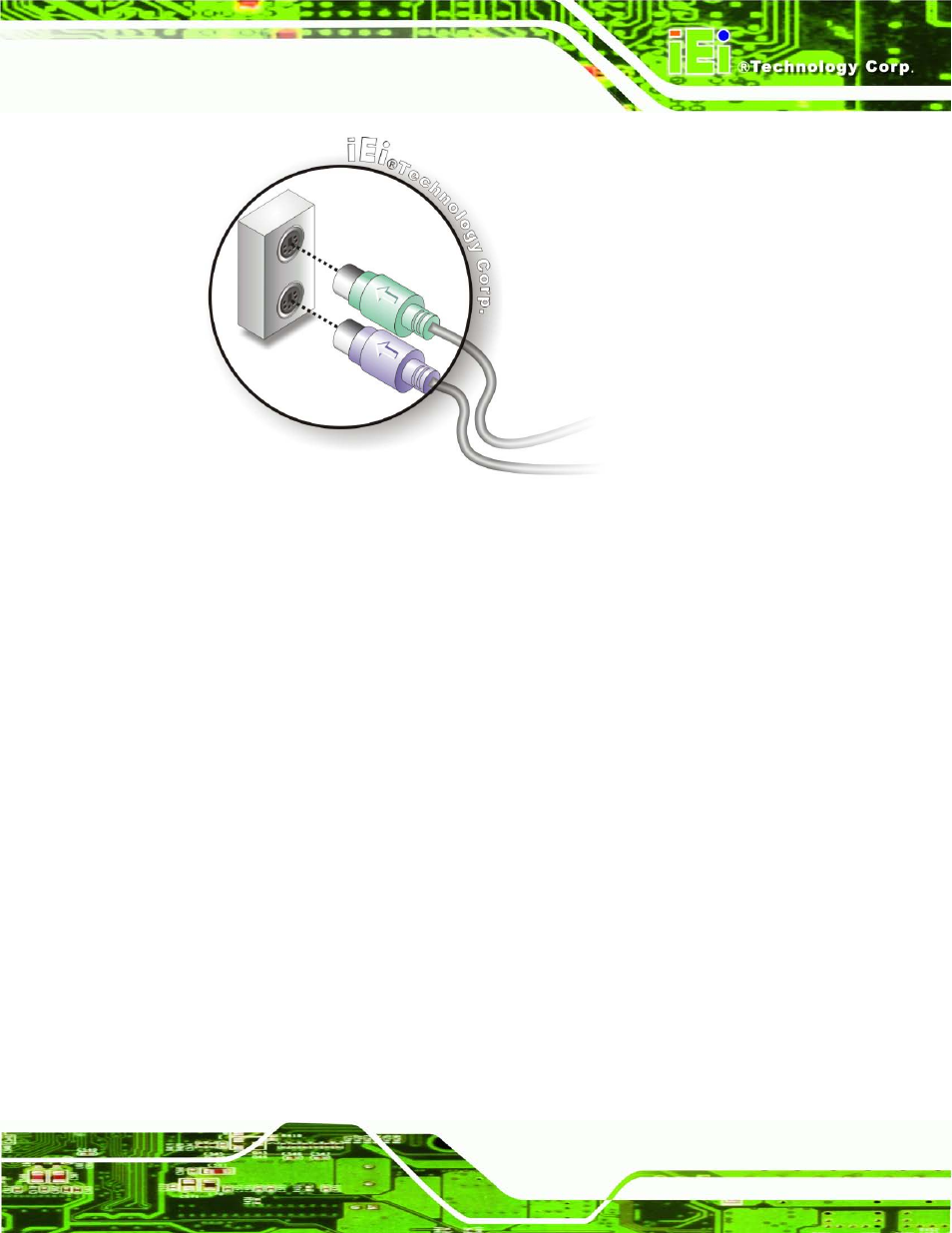

Figure 4-12: PS/2 Keyboard/Mouse Connector

4.5.5 S e ria l De vic e Co n n e c tio n

The KINO-AQ870 has two single female DB-9 connectors on the external peripheral

interface panel for a serial device. Follow the steps below to connect a serial device to the

KINO-AQ870.

S te p 1:

Locate the DB-9 connector. The locations of the DB-9 connectors are shown

in Chapter 3.

S te p 2:

Insert the serial connector.

Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See Figure 4-13.
