KINO-AQ870
P a g e 55
S te p 1: Locate the DVI connector. The location of the DVI connector is shown in
Chapter 3.
S te p 2: Align the DVI connector. Align the male DVI connector on the digital display
device cable with the female DVI connector on the external peripheral interface.
S te p 3: Insert the DVI connector. Once the connectors are properly aligned with the
male connector, insert the male connector from the digital display device into the
female connector on the KINO-AQ870. See Figure 4-10.

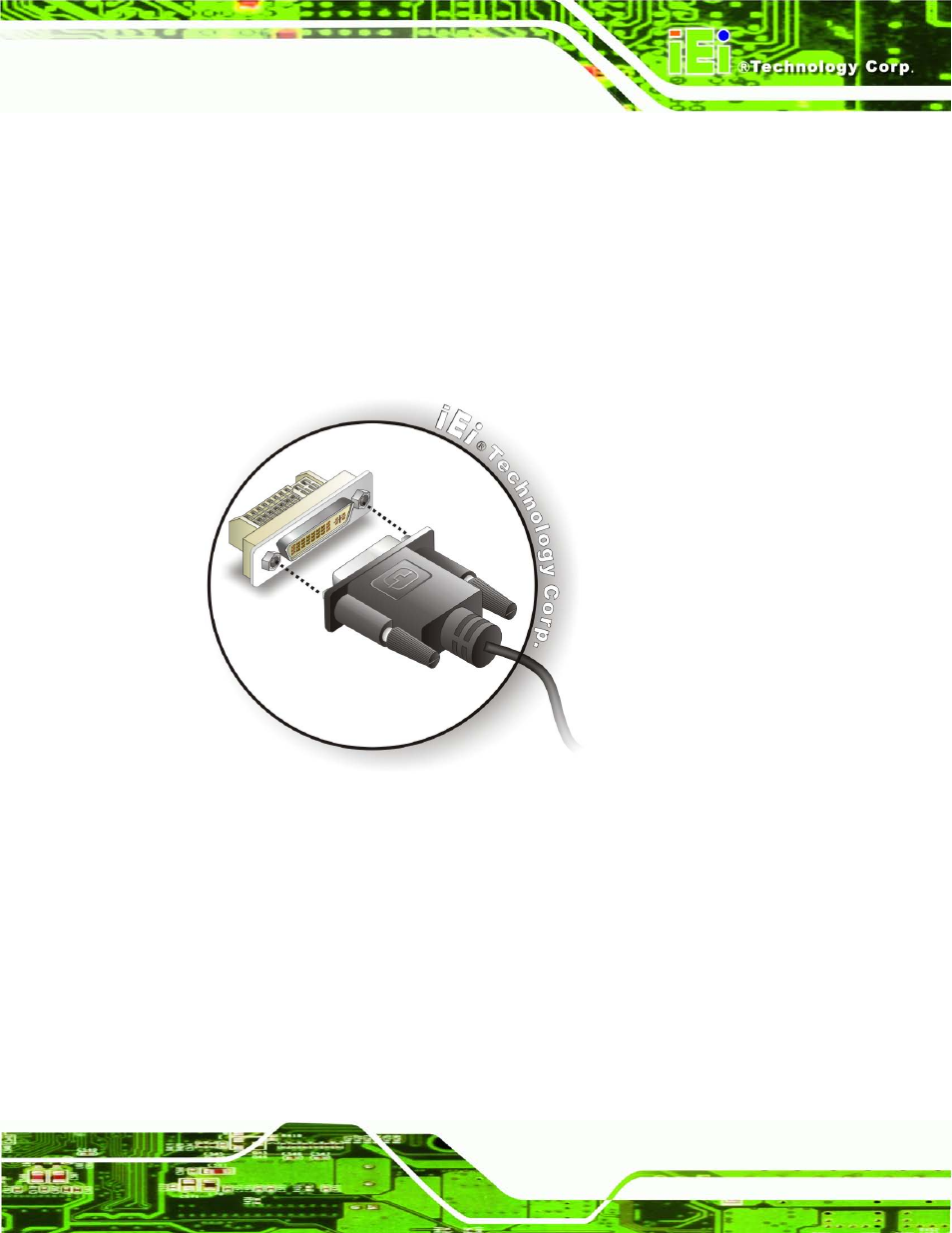

Figure 4-10: DVI Connector
S te p 4: Secure the connector. Secure the DVI connector from the digital display device
to the external interface by tightening the two retention screws on either side of
the connector.
4.5.3 LAN Co n n e c tio n
There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
