KINO-AQ870

P a g e 34

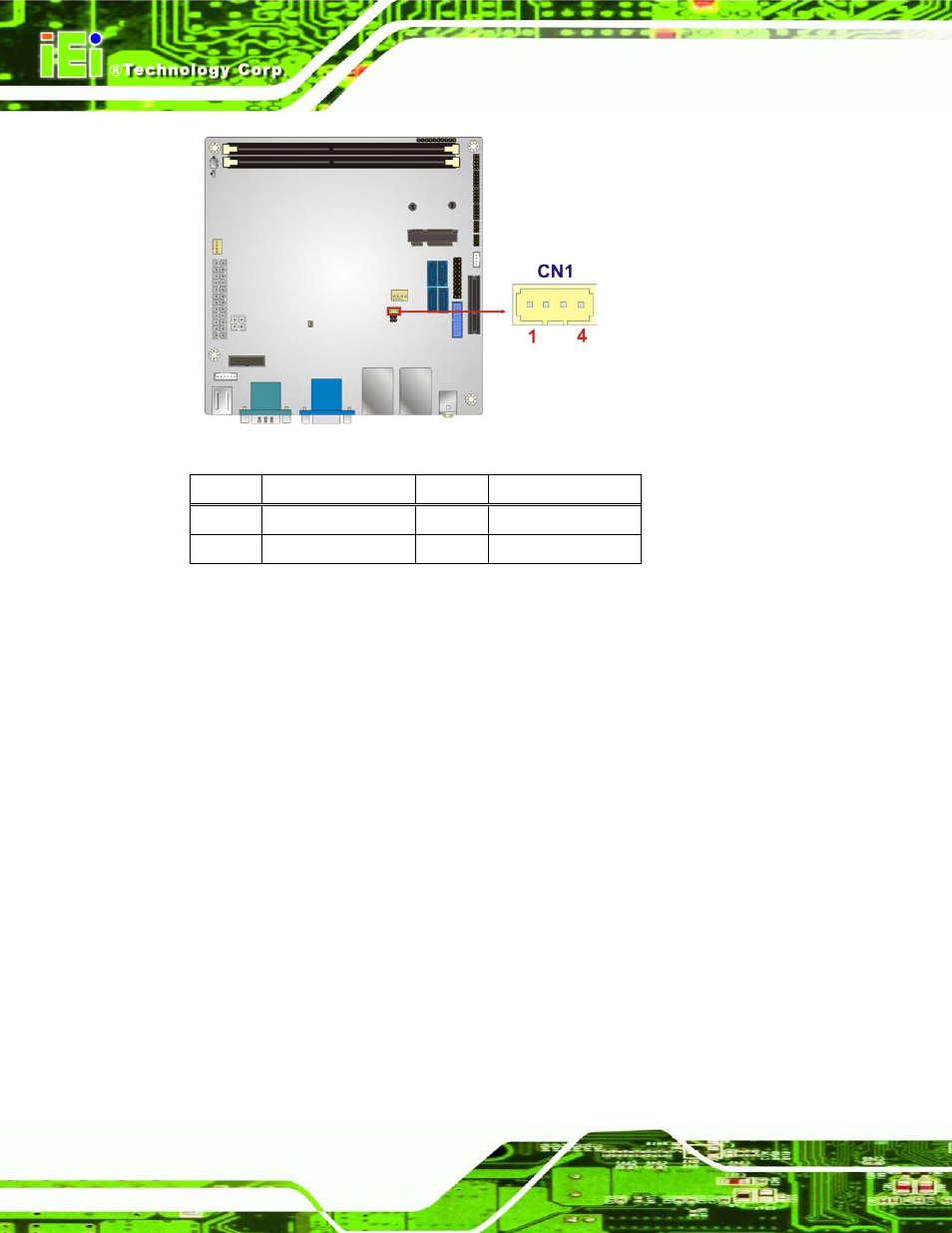

Figure 3-20: SMBus Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

SMBDATA

3

SMBCLK

4

+5V

Table 3-17: SMBus Connector Pinouts

3.2.20 TP M Co n n e c to r

CN La b e l:

TP M1

CN Typ e :

20-pin connector

CN Lo c a tio n :

See Figure 3-21

CN P in o u ts :

See Table 3-19

The Trusted Platform Module (TPM) connector secures the system on bootup.
