KINO-AQ870

P a g e 26

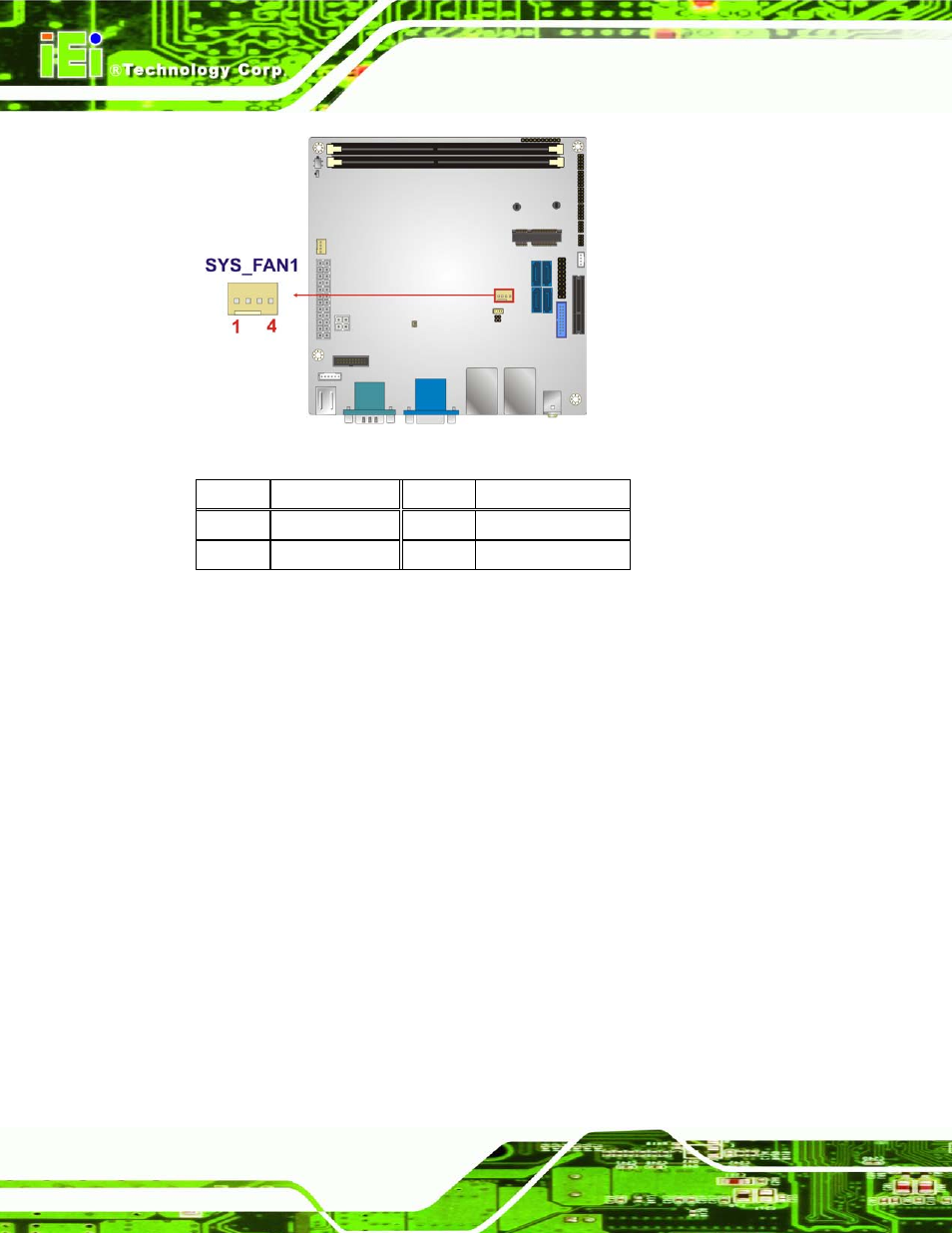

Figure 3-11: System Fan Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

+12V

3

FANIO2

4

FANOUT2

Table 3-11: System Fan Connector Pinouts

3.2.11 Fro n t P a n e l Co n n e c to r

CN La b e l:

F_P ANEL2

CN Typ e :

10-pin header

CN Lo c a tio n :

See Figure 3-12

CN P in o u ts :

See Table 3-12

The front panel connector connects to the indicator LEDs and buttons on the computer’s

front panel.
