KINO-AQ870
P a g e 40
3.3.3 Ke yb o a rd /Mo u s e Co n n e c to r
CN La b e l: KB_MS1
CN Typ e : Dual PS/2
CN Lo c a tio n : See Figure 3-23
CN P in o u ts : See Table 3-24
The PS/2 ports are for connecting a PS/2 mouse and a PS/2 keyboard.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
A1 KBDATA A2 N/A
A3 GND A4 +5V_KBMS
A5 KBCLK A6 N/A
B1 MSDATA B2 N/A
B3 GND B4 +5V_KBMS
B5 MSCLK B6 N/A
Table 3-23: PS/2 Connector Pinouts
3.3.4 RS -232 S e ria l P o rt Co n n e c to rs
CN Label: COM1_2
CN Type: DB-9 Male
CN Location: See Figure 3-23
CN Pinouts: See Figure 3-26 and Table 3-25
The serial port connects to a RS-232 serial communications device.

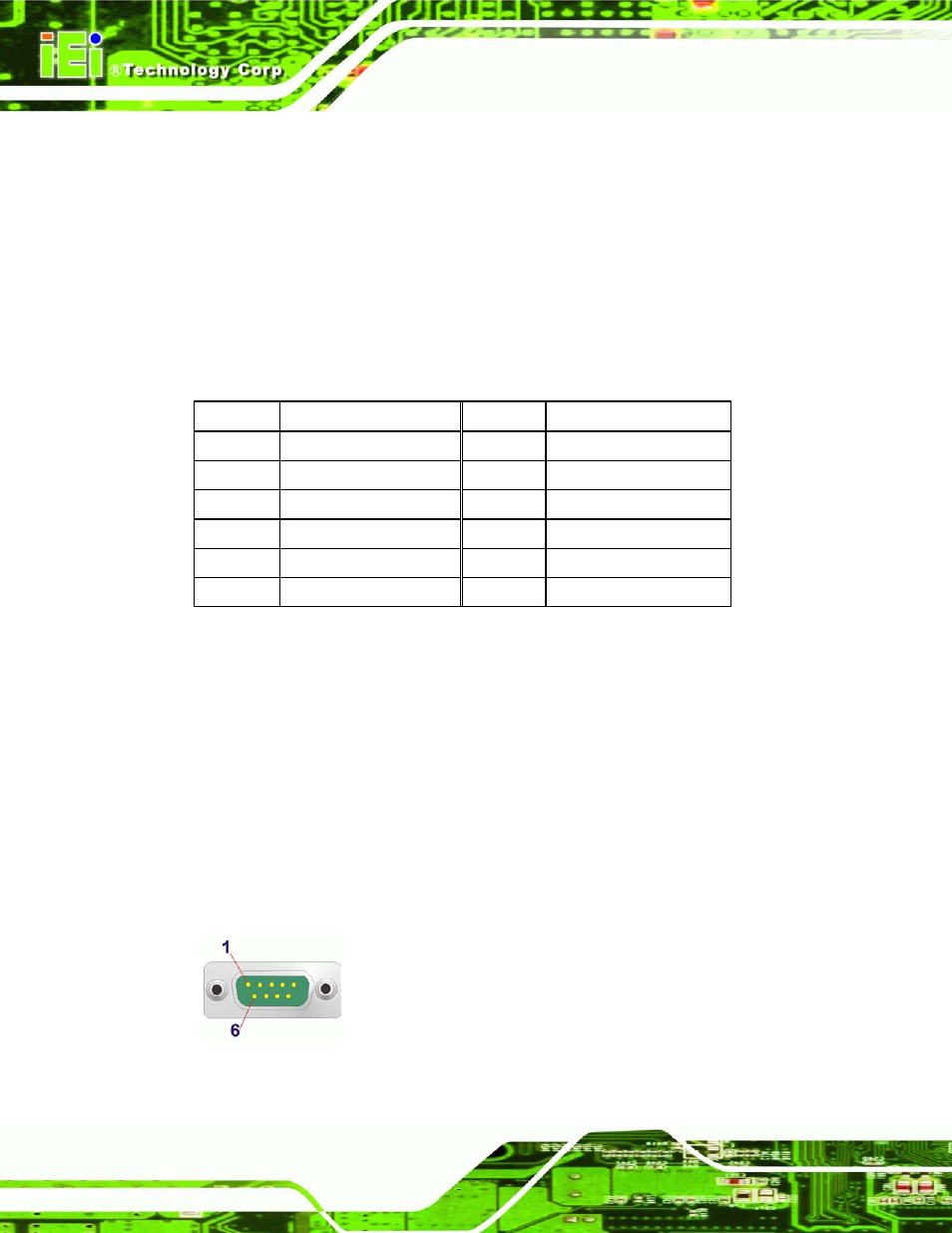

Figure 3-26: RS-232 Serial Port Connector
