Page 34: Table 3-7: cpu power connector pinouts, 6 ddr3 s o-dimm s lo ts

background image

KINO-AQ870

P a g e 22

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

GND

2

GND

3

VREG_12V

4

VREG_12V

Table 3-7: CPU Power Connector Pinouts

3.2.6 DDR3 S O-DIMM S lo ts

CN La b e l:

CHA_DIMM1, CHB_DIMM1

CN Typ e :

DDR3 SO-DIMM slot

CN Lo c a tio n :

See Figure 3-7

The DDR3 SO-DIMM slots are for DDR3 SO-DIMM memory modules.

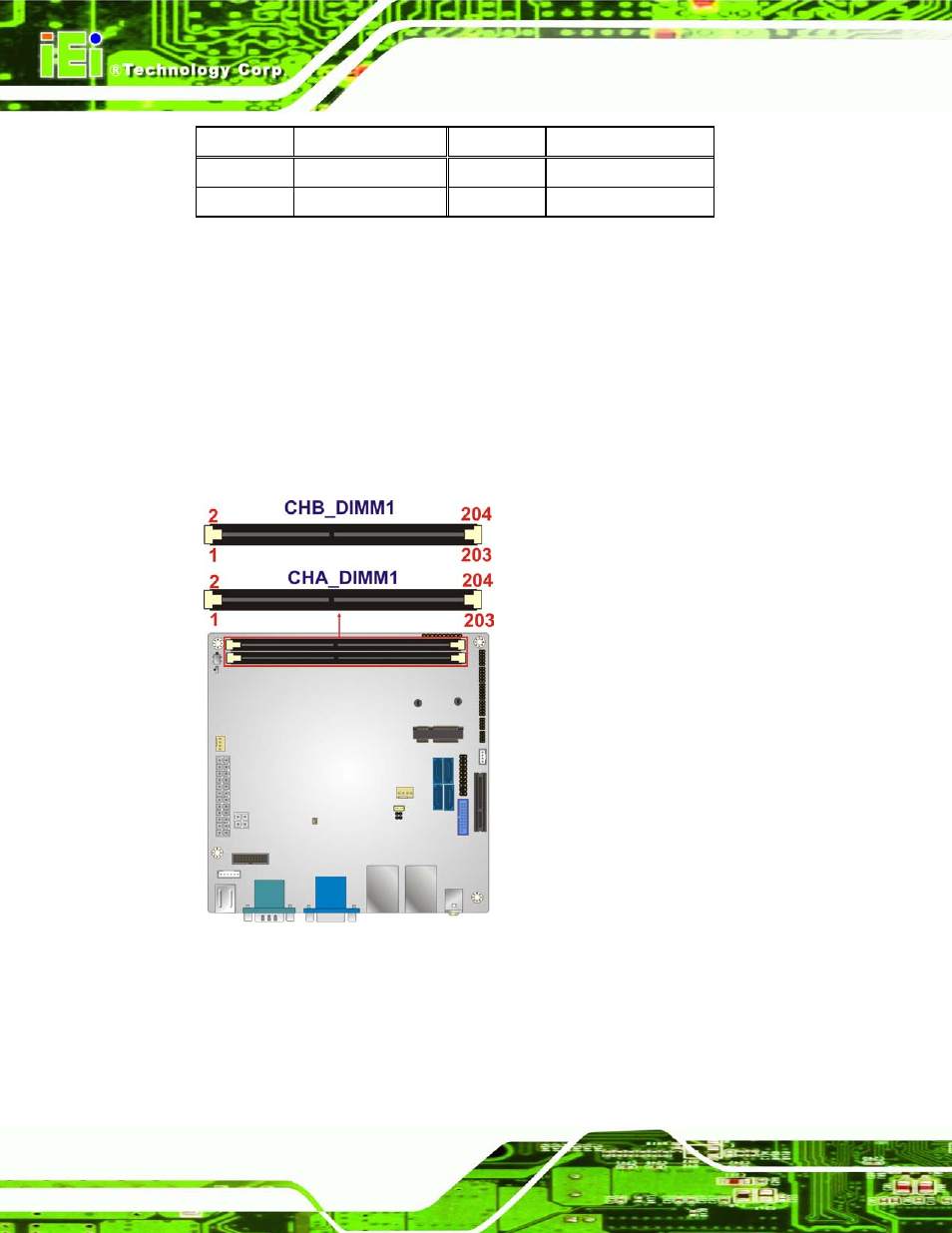

Figure 3-7: DDR3 SO-DIMM Slot Locations

3.2.7 Dig ita l I/O Co n n e c to r

CN La b e l:

DIO1
