KINO-AQ870
P a g e 2
1.1 In tro d u c tio n

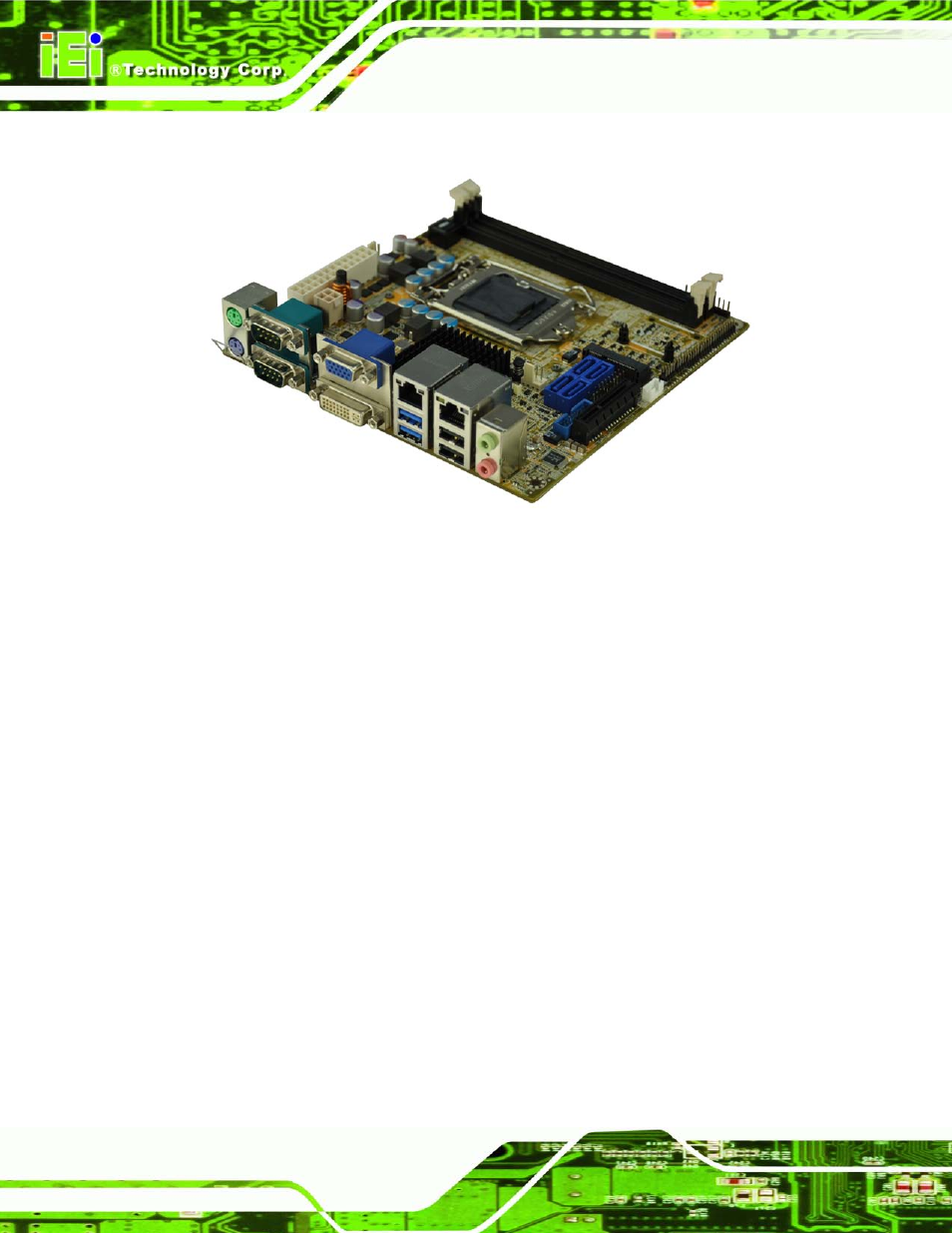

Figure 1-1: KINO-AQ870
The KINO-AQ870 is a Mini-ITX motherboard. It accepts a LGA1150 Intel® Haswell
processor and supports two 204-pin 1066/1333/1600 MHz dual-channel DDR3 SDRAM
unbuffered DIMMs up to 16 GB.
The integrated Intel® Q87 System Chipset supports two GbE LAN: one through the Intel®
I217LM with Intel® AMT supported and the other through the Intel® I211 PCIe controller.
The KINO-AQ870 includes a VGA connector and a DVI-D connector. Expansion and I/O
include one PCIe x4 slot, two USB 3.0 connectors on the rear panel, two USB 3.0
connectors by pin header, two USB 2.0 connectors on the rear panel, four USB 2.0
connectors by pin header and four SATA 6Gb/s connectors. Serial device connectivity is
provided by one internal RS-422/485 connector, two external RS-232 connectors and
three internal RS-232 connectors.
