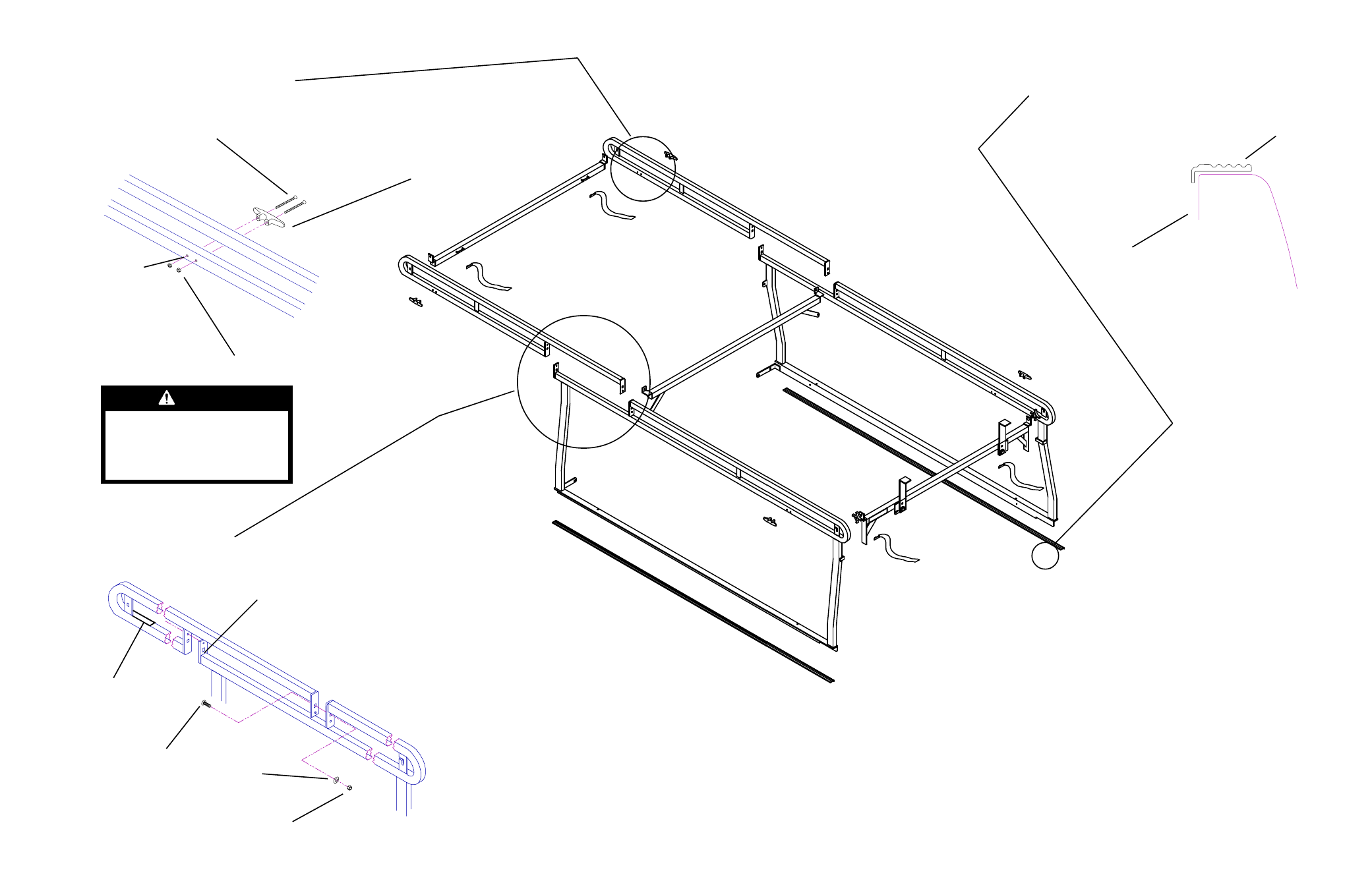

STEP 3. Mounting Pad Installation.
Place pads on the top of the bed. It may be necessary to
hold the pads in place with small pieces of tape.
Mounting
Pad
Inside of
truck bed
STEP 4. Rail and Rear Crossmember Installation
With the help of at least two other people lift one of the
assembled sections onto the truck. One person should be in
the truck to hold the first section while the other section is
being lifted into position. Once both sections are positioned,
install the rear crossmember as shown in STEP 5.
3
5/16-18 x 1"
Carriage Bolt
5/16 Flat
Washer
5/16-18 Nylon
Lock Nut
STEP 1. Rail Assembly.
Tie Down
10-24 Nylon
Lock Nut
10-24 x 2-3/4"
Flat Head Screw
STEP 2.
Tie Down Installation.
Install tie downs where desired.
Put E-6000 sealant on the back of the
tie downs and under nuts before installing.
This bolt does not get installed until
the Center Crossmember is attached.
Driver Side (shown)
or Passenger Side
Decal
CAUTION
To keep debris out of your
eyes when drilling, always
wear protective eyewear.
7/32" Hole
