o 1.
Connect the brown wire [Channel 1 Out
(V)] from the connector cable on the
MCS2000-CT controller to terminal 1 In A
0 – 10 V on the MCS2000-PSDRV2.
Insure that the terminal on the
MCS2000-PSDRV2 is tightened securely.
o 2.
Connect the green wire [Channel 1 Out
(0V)] from the connector cable on the
MCS2000-CT controller to terminal 2, 0 V
on the MCS2000-PSDRV2. Insure that the
terminal on the MCS2000-PSDRV2 is
tightened securely.
If a dual brake system is to be used, then proceed
to step 3.
If only a single brake is to be used on the
MCS2000-DRV2, then skip to either the 24 volt
brake wiring section, page 8 or the 48 volt brake
wiring section, page 10.
o 3.
Connect the red wire [Channel 2 Out (V)]
from the connector cable on the
MCS2000-CT controller to terminal
3 In B 0-10 V on the MCS2000-PSDRV2.
Insure that the terminal on the
MCS2000-PSDRV2 is tightened securely.
o 4.
Connect the black wire [Channel 2 Out
(0V)] from the connector cable on the
MCS2000-CT controller to terminal 4 on
the MCS2000-PSDRV2. Insure that the
terminal on the MCS2000-PSDRV2 is
tightened securely.
o 5.
This completes the wiring between the
MCS2000-CT and the MCS2000-PSDRV2.
Double check all wiring before proceeding
to the next section C.
o 6.
Proceed to either the 24 volt brake wiring
section, page 8 of the manual or the 48
volt brake wiring section, page 10 of the
manual.
Note: Wiring is shown for both channels. If only
one channel is required, then follow wiring
using only the brown and green wires as
shown.

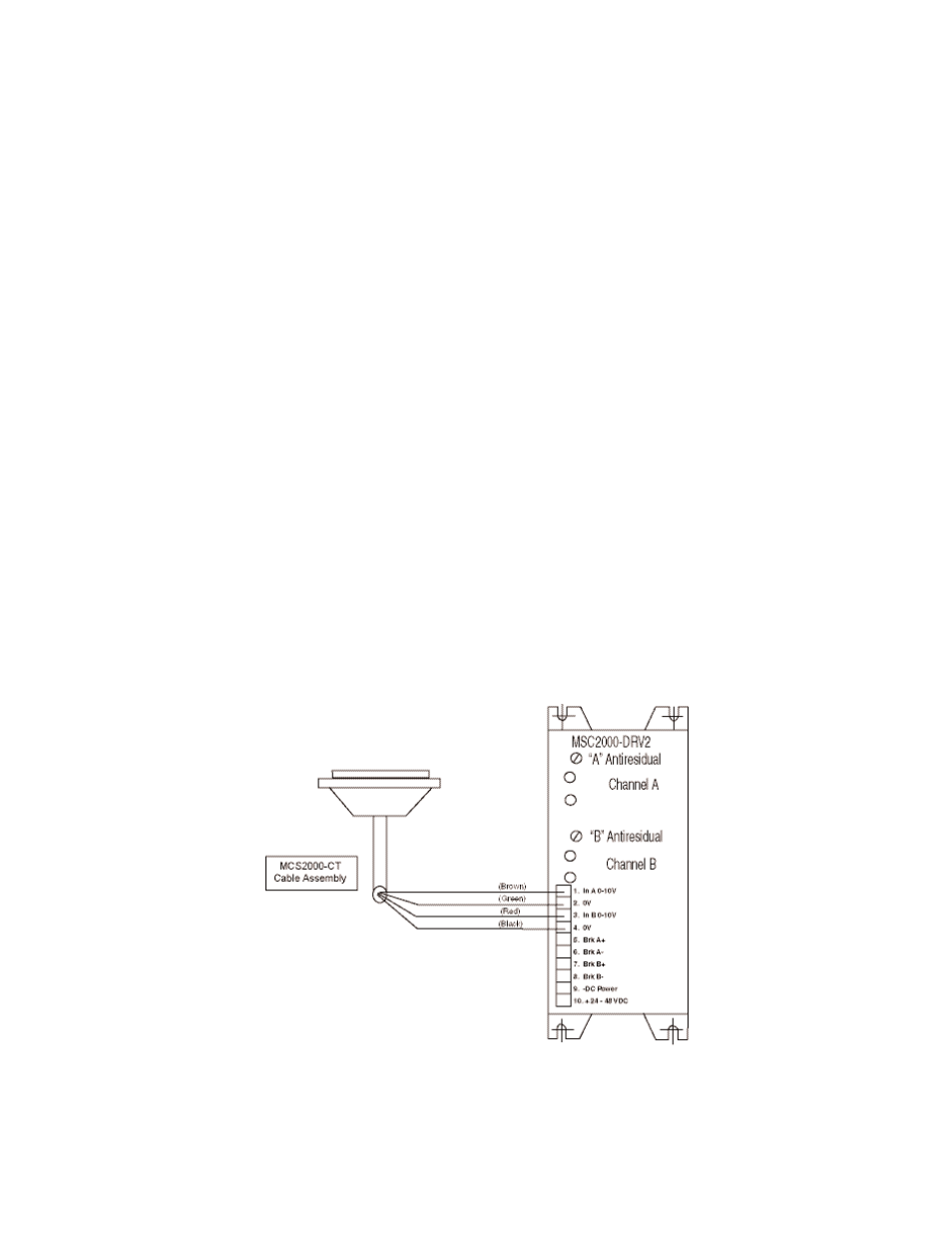

Figure 3 MCS2000-CTDA or MCS2000-CTLC to MCS2000-PSDRV2
MCS2000-CT Cable and Connector
MCS2000-PSDRV2 Driver
