Warner Electric AT Clutch – Major Service Sizes 25, 55, 115 - Manual (Page 3)

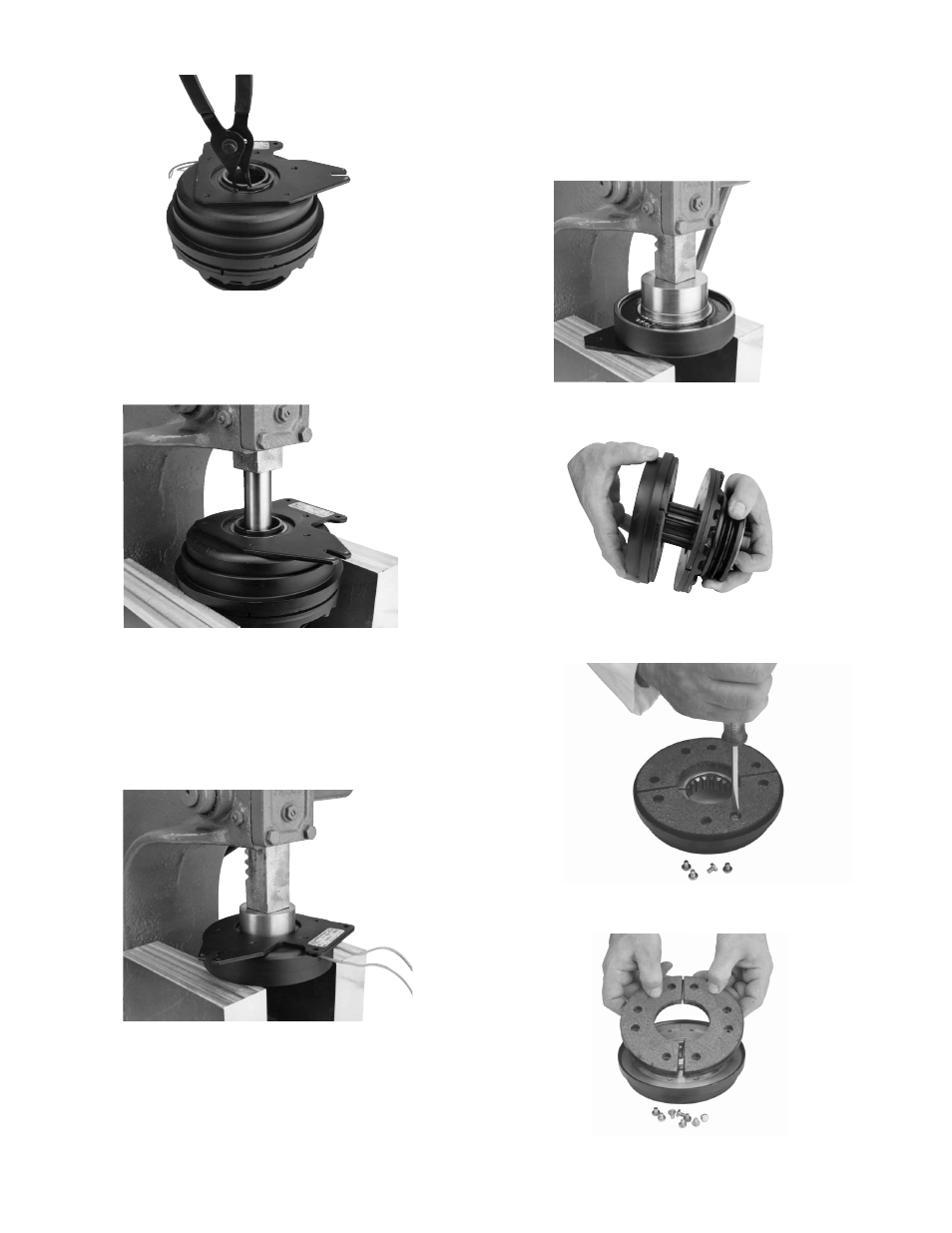

9. Press the new bearing (Item 9) into the field
assembly by pressing on the bearing outer
race. Do not press on the bearing inner
race or damage to the bearing will result,
making it unusable.
10. Remove the rotor assembly (Item 8) from
the hub (Item 6).
11. Remove the screws (item 8-5) which retain
the friction disc segments (item 8-1).
12. Lift the friction disc segments (item 8-1) off
the rotor, exposing the Autogap assembly.
7. Remove the field assembly (Item 10) and
bearing (Item 9) by locating and supporting
on the rotor outer diameter (Item 8) and
pressing on the hub (Item 6).
8. Remove the bearing (Item 9) from the field
assembly (Item 10) by pressing on the inner
race while supporting the field assembly on
its face.
Note: Use caution to avoid damaging the
epoxy covering the coil.
3 Warner Electric • 800-825-9050 819-0324
