pg.6
B-300-HDMATRIX-RCVR Installation and Users Manual
CONNECTING A CONTROL SYSTEM OR IR CONNECTING BLOCK
When connecting a control system or connecting block to the IR Receiver jack, the 12V DC (Sleeve) must
not be connected. Connections of this type require the use of the included Stereo to Mono IR Adaptor or
a custom cable made. A mono 3.5mm cable should not be used as it will short out the 12 VDC to GND and
will make the connection inoperable.

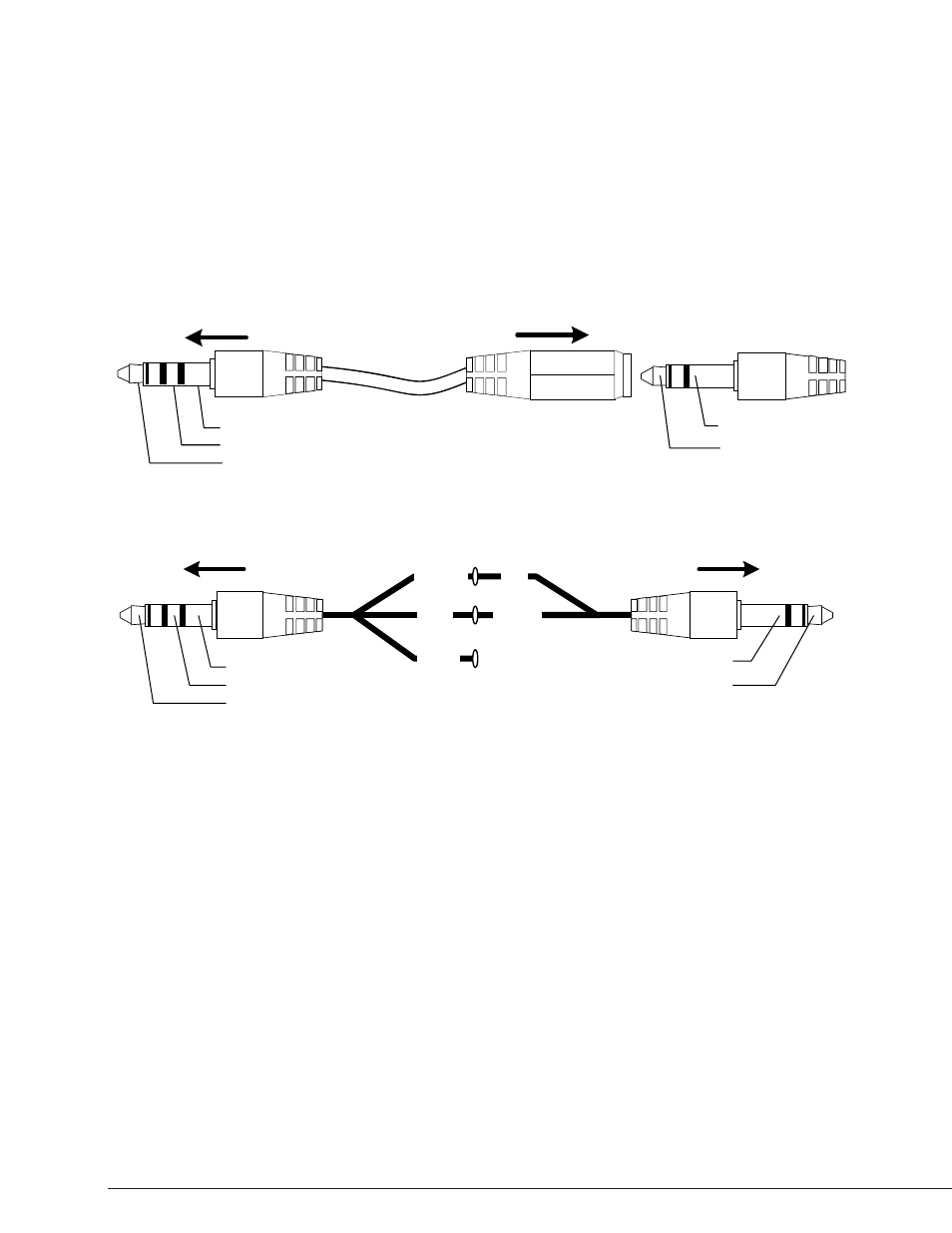

Stereo to Mono IR Adaptor
Custom Cable Construction
INSTALLATION
1. Connect a HDMI source (such as a Blu-ray Disc player) to the B-300-HDMATRIX switcher.
2. Connect a HDMI display (such as a LCD TV) to the receiver.
3. Connect IR Flasher/Receiver as needed to the receiver-300-HDMATRIX-RCVR and he B-300-HDMATRIX
switcher.
4. Connect a Cat5e/6 cable between the units.
5. Connect the 5V 4A DC power supply unit to the power jack of the B-300-HDMATRIX-RCVR.
6. Adjust the Distance setting on the B-300-HDMATRIX-RCVR as described above in Distance Control.
IR Signal (Tip)
12V DC (Sleeve)
GND (Ring)
To B-300-HDMATRIX-RCVR
To IR Control System/
Connecting Block
IR Signal (Tip)
GND (Sleeve)
IR Signal
(Tip) (Tip)
12V DC
(Sleeve)
GND
(Ring)
(Sleeve)
IR Signal (Tip)
12V DC (Sleeve)
GND (Ring)
To B-300-HDMATRIX-RCVR
IR Signal (Tip)
GND (Sleeve)
To IR Control System/
Connecting Block
