Receiver – Staub Electronics HD-2CAT-1080P-130 BINARY - CAT5 HDMI EXTENDER User Manual
Page 5
5. Latch-locking power jack: Connect to 5V DC power supply.
6. TMDS: Transmission Minimized Distance Signal (Audio/Video)
7. DDC: Display Data Channel (Data)
8. HDMI OUT: Connect to a HDMI display with a HDMI male-to-male cable
9. Rotary control: Adjust the 8-level equalization control to the received HDMI
signals. The HDMI signal level varies from 0 (strongest) to 7
(weakest) for respective transmission length from longest
possible range to short distance. Adjust the signal
level from 7 to 0 and stop turning the rotary switch when
the audio/video is playing normally. Inappropriate signal
level setting may cause an overpowering issue that would
shorten the product life significantly.

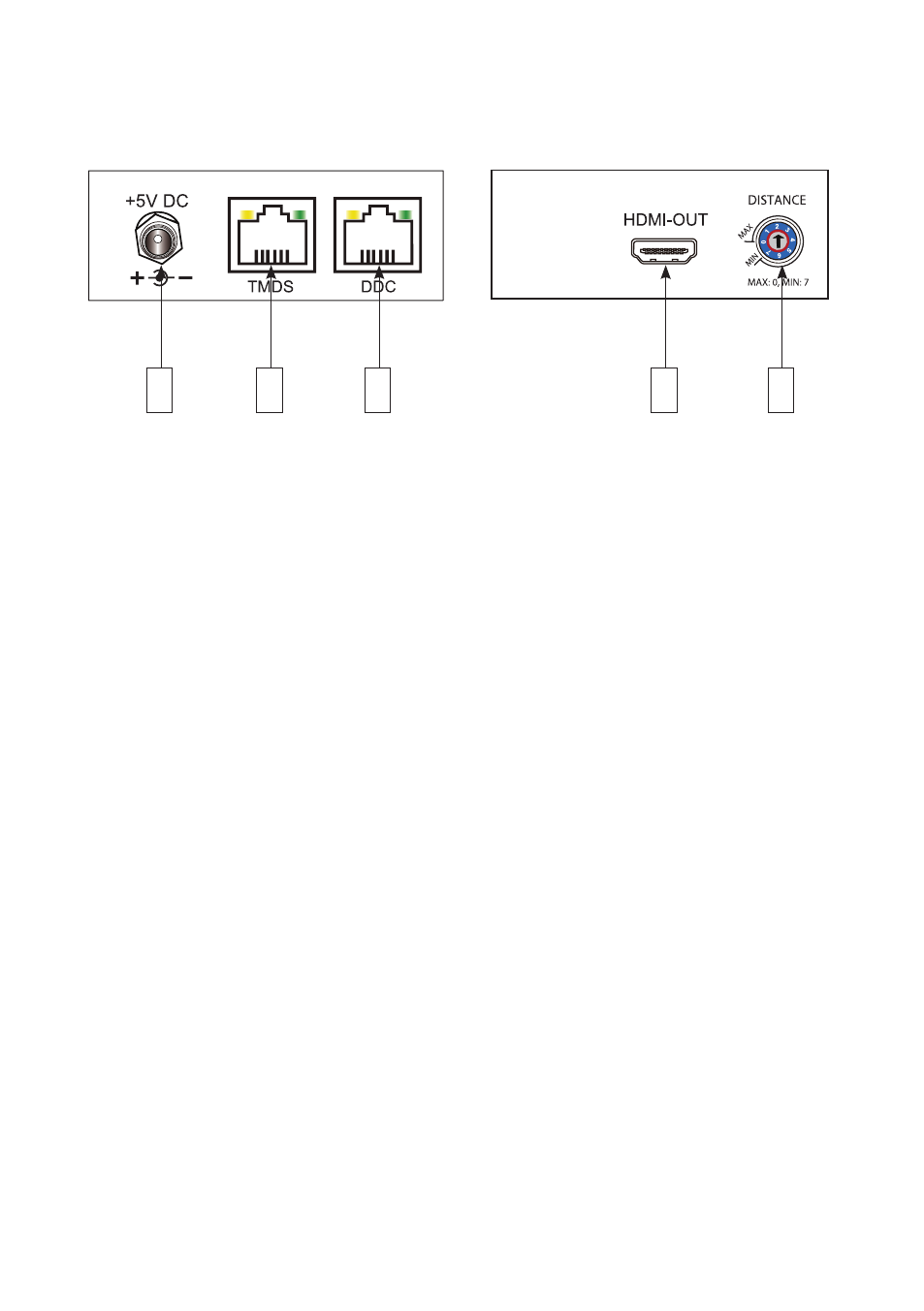

RECEIVER
5
6
7
8
9
INPUT PANEL
OUTPUT PANEL
