5
INTELLIGENT ACTUATOR
[1] Multi-point DIO connector (CN1)
This connector is used to connect a multi-point DIO board for X-SEL controller.
Table 3-2 Specification List for Multi-point DIO Connector
Item
Connector HIF6-100PA-12.7DSA (by Hirose)
100-pin half-pitch flat connector
Connector name CN1
DI 48 points
DO 48 points
Connected unit Multi-point DIO board

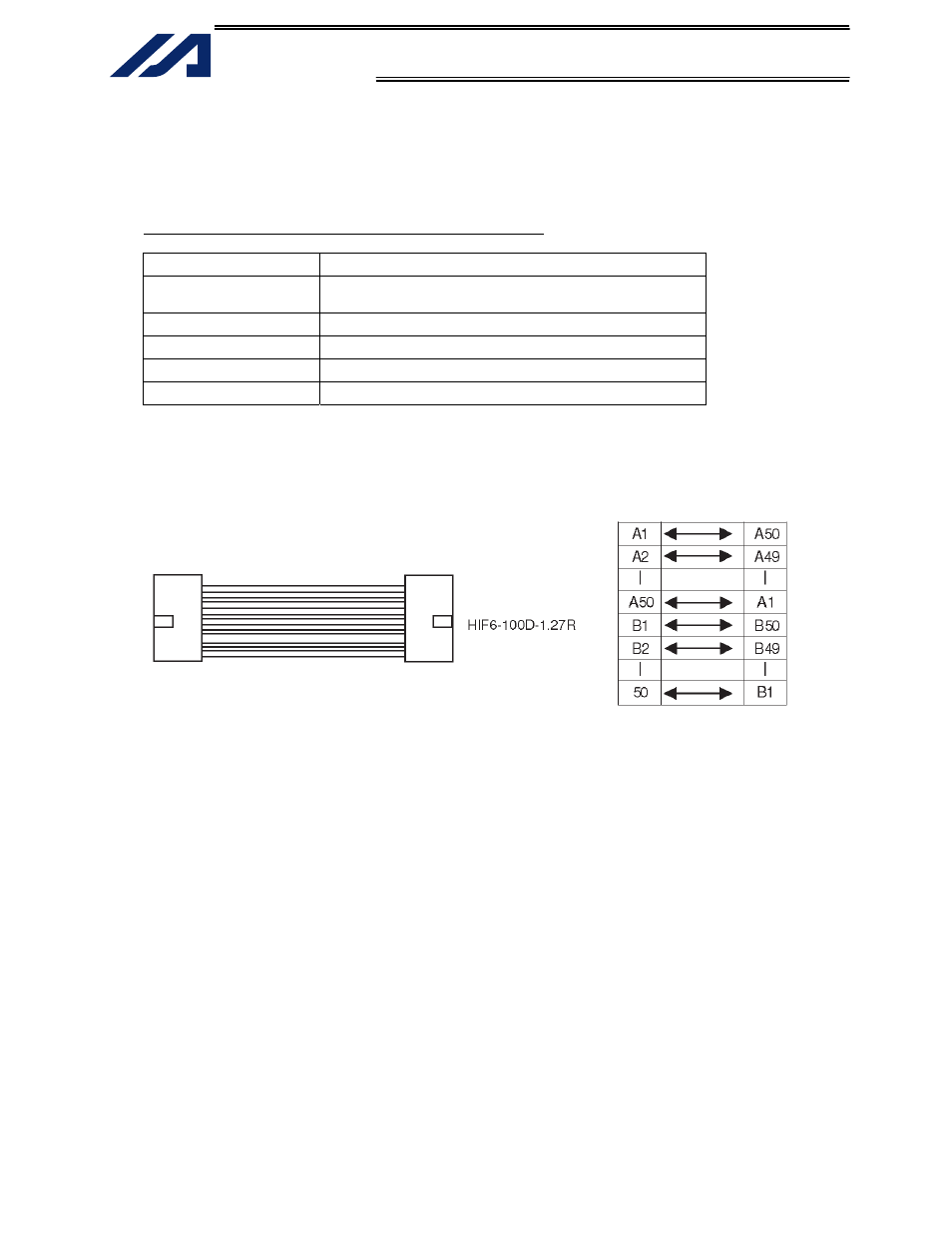

• The wiring cable used for connection with a multi-point DIO board is shown below.
Cable model: CB-X-PIOH020-H6
Multi-point DIO board end Terminal block unit end
(on both ends)
AWG28 flat cable
B
