4
INTELLIGENT ACTUATOR

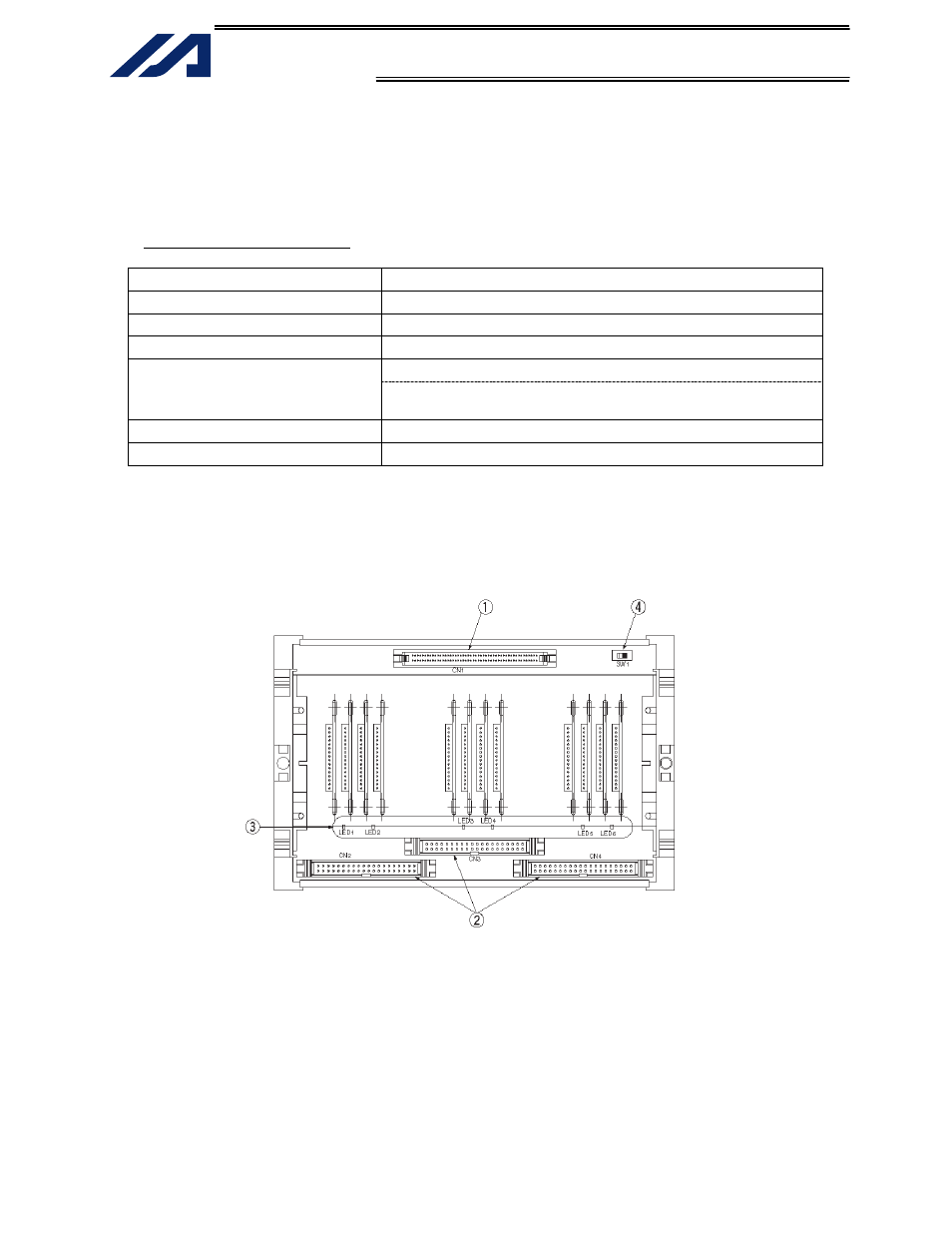

3. Specifications
3.1 Unit Specifications
Table 3-1 Unit Specifications
Item Specification
Numbers of connectable I/O points 48 input points, 48 output points
Controller connector 100-pin half-pitch flat connector
External I/O equipment connector 40-pin MIL flat connector
24 VDC ± 10% (Internal consumption: 7.2 W)
External power-supply voltage Power supply for DIO board: 24 VDC ±10% (Internal
consumption: 25 W (96 points))
Installation method Installation on DIN rail
External dimensions 201.3 mm × 127.5 mm × 49.2 mm
3.2 Names and Functions of Parts
