10
INTELLIGENT ACTUATOR
4.2 Output
Table 4-2 Specifications of Output Part
Specification
NPN specification PNP specification
Output element MOS-FET (by Toshiba: 2SK2399) MOS-FET (by Toshiba: 2SJ377)
Insulated element Photocoupler (by NEC: PS2841-4B)
External power-supply voltage 24 VDC ± 10%
Maximum load current Max. 500 mA/point
(Max. 800 mA/ 8 points) : *1
Leak current Max. 0.5 mA/point
*1: The maximum load current of 800 mA indicates the total of output currents for each 8-point
group.

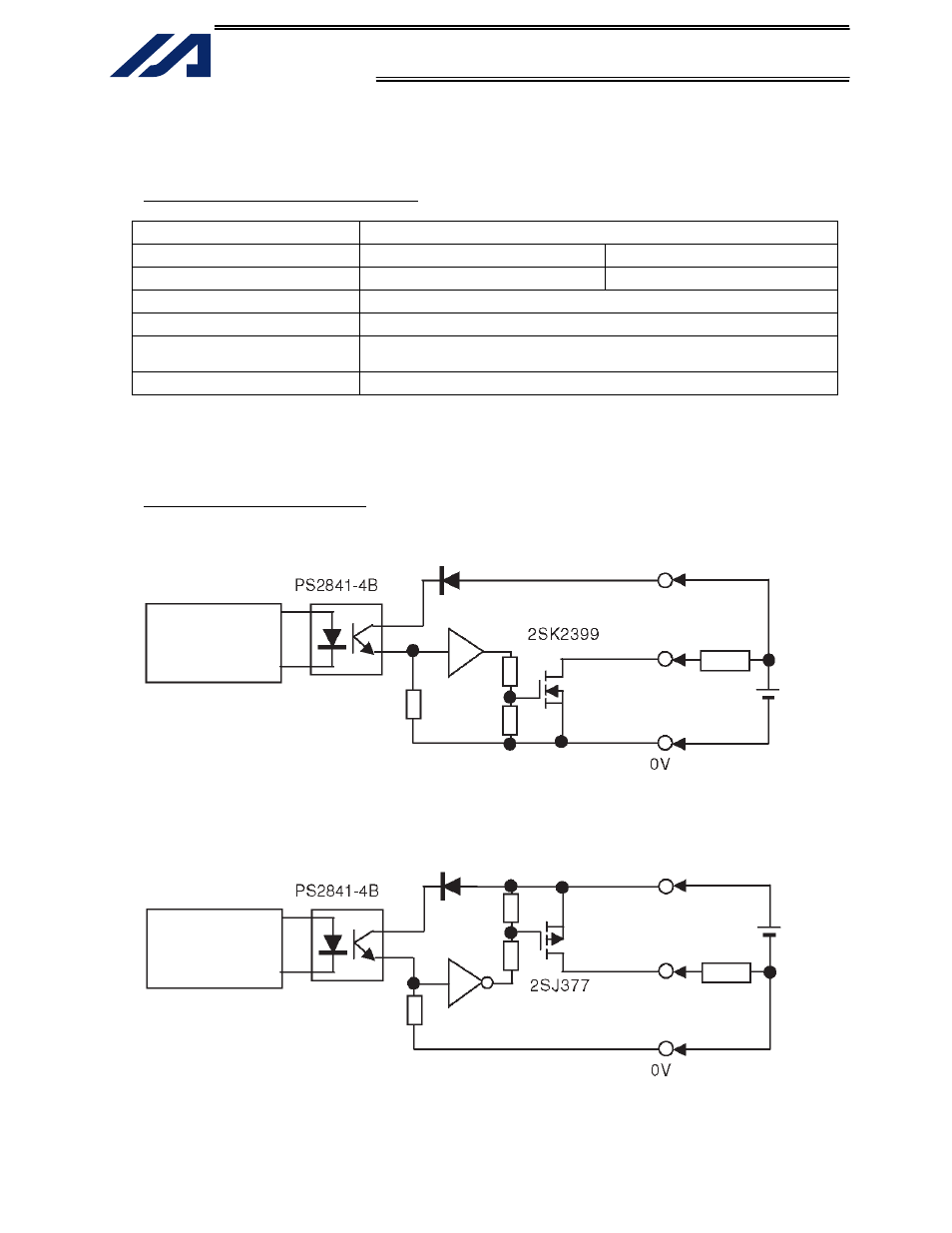

Fig. 4-2 Circuit of Output Part
• NPN specification
• PNP specification
Internal circuit
External power supply
(24 VDC)
Output terminal
Load
External I/O connector
+24 V
Internal circuit
External power supply
(24 VDC)
Output terminal
Load
External I/O connector
+24 V
