8
INTELLIGENT ACTUATOR
5. I/O Circuits
5.1 Input
Table 5-1 Specifications of Input Part
Item Specification (Common to PNP and NPN specifications)
External power-supply voltage 24 VDC ± 10%
Input current Max. 7 mA/point
Leak current Max. 1 mA/point

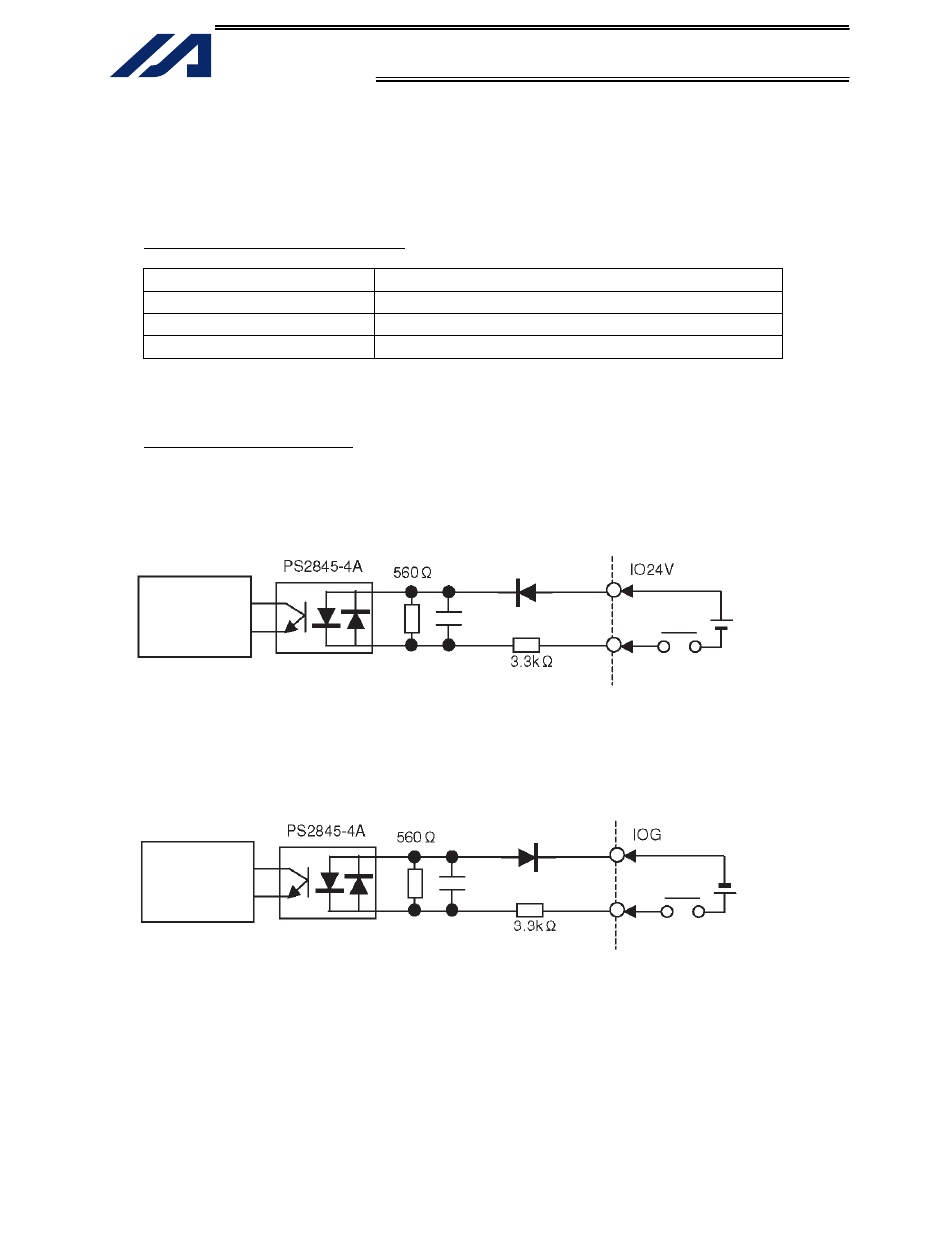

Fig. 5-1 Circuit of Input Part
• NPN specification
• PNP specification
External power supply
(24 VDC)
Input terminal
Internal circuit
Internal circuit External power supply
(24 VDC)
Input terminal
