8.0 1/2 to 20 Ton Parts List

When ordering Parts, please provide the Hoist code number, lot number and serial number located on the Hoist nameplate
(see fig. below).

Reminder: Per sections 1.1 and 3.5.1 to aid in ordering Parts and Product Support, record the Hoist code number, lot number
and serial number in the space provided on the cover of this manual.

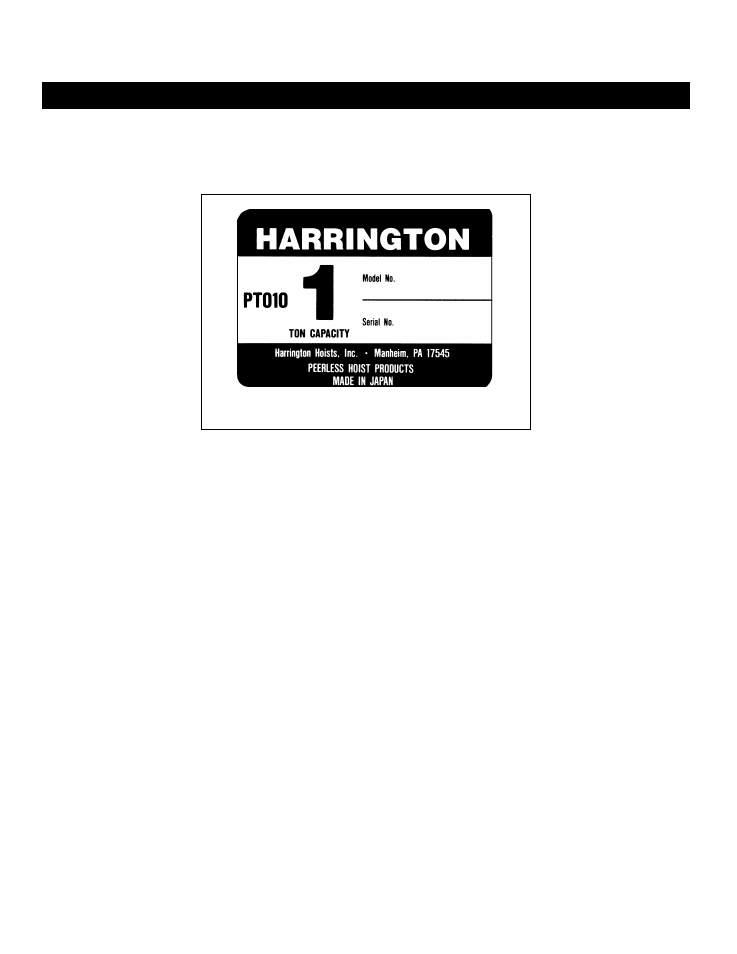

TF2/TS2 Series Nameplate

The parts list is arranged into the following sections:


Section ½ to 5 Ton Page

8.1 TF2 Push Trolley Parts – 1/8 to 5 Ton ................................................................................................... 62

8.2 TF2 Geared Trolley Parts – 1/8 to 5 Ton ................................................................................................ 64

8.3 TS2 Push Trolley Parts – 1/8 to 5 Ton ................................................................................................... 66

8.4 TS2 Geared Trolley Parts – 1/8 to 5 Ton ............................................................................................... 68


Section 8 to 20 Ton

8.5 TF/TS Push/Geared Trolley Parts for CB Hoist – 8 to 10 Ton ............................................................... 70

8.6 TF/TS Push/Geared Trolley Parts for ER2 Hoist – 8 to 10 Ton ............................................................. 72

8.7 TF/TS Geared Trolley Parts for CB Hoist – 15 to 20 Ton ...................................................................... 74

8.8 TF/TS Geared Trolley Parts for ER2 Hoist – 15 to 20 Ton .................................................................... 78


In the column "Parts Per Trolley" a designator is used for parts that apply only to a particular model or option.

Refer to Section 2 for TF2/TS2 Trolley model numbers and additional descriptions.

The designators are:

Push = Push TF or TS model only
Geared = Geared TF or TS model only
Std. = Standard Flange Range
Wide = Optional Wide Flange Range
TS = TS model only
