TCR Suspender (used for Air Hoist)

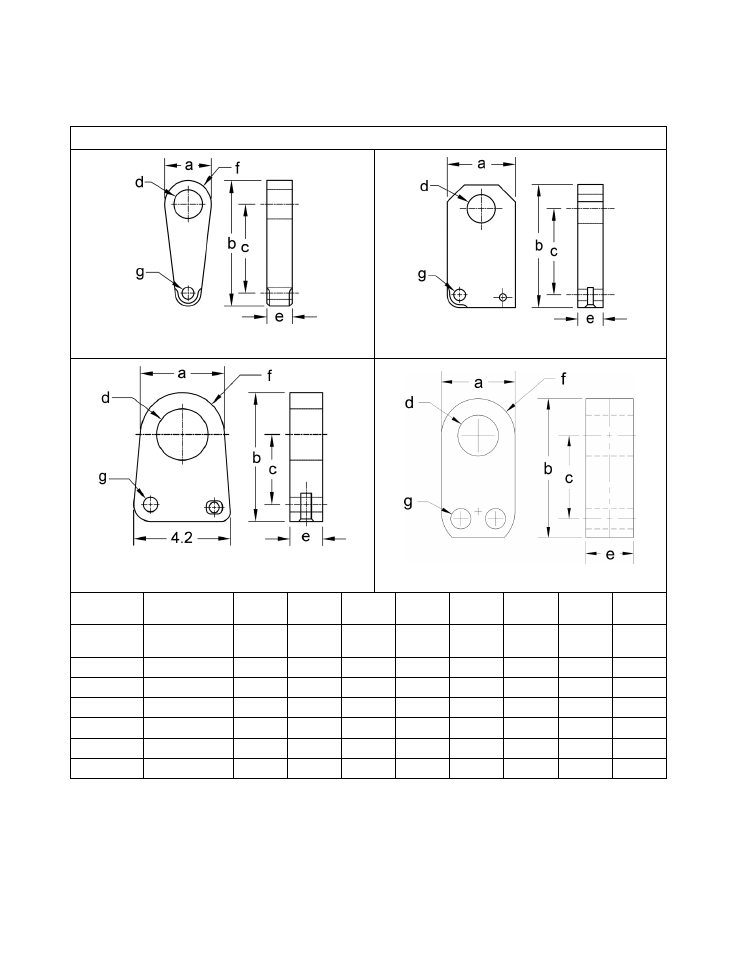

Table 2-12 TCR Suspender Dimensions
TCR250, TCR500, TCR1000, TCR3000
TCR1000-2, TCR2000-2
TCR6000-2
TCR10000-2
Model Hoist
Suspender P/N
Cap
(Ton)
a
(in)
b
(in)
c
(in)
d
(in)
e
(in)
f
(in)
g
(in)
TCR250
TCR500
6040204
¼ TO ½
2.00
5.33
3.78
.875
1.10
R 1.00
0.512
TCR1000
6040201
1
2.00
5.33
3.78
1.230
1.10
R 1.00
0.512
TCR1000-2
60403
1
3.00
5.38
3.78
1.230
1.10
--
0.512
TCR2000-2
6040403
2
3.25
5.56
3.54
1.703
1.10
--
0.512
TCR3000
TF26K531030S
3
2.44
4.80
2.83
1.42
1.77
R 1.22
0.795
TCR6000-2
60405
6
4.48
6.91
3.75
2.761
1.75
R 2.25
0.787
TCR10000-2
60926
10
5.00
9.41
5.64
2.764
3.22
R2.50
1.379
