Page 35
2)
Insert the Suspension Shaft to Side Plate G and attach it with the Suspension Shaft Bolt, Slotted Nut and Split Pin
(cotter pin). Refer to Figure 3-33 to ensure that correct Suspension Shaft holes are used. Securely bend both
branches of the Split Pin after insertion.
3)
Referring to Figure 3-35 and Table 3-3 install the inner adjusting Spacers, Suspension plates, and Side Plate S on
the Suspension Shaft. Use all of the Spacers provided with the trolley. If the beam width is not listed in Table 3-2,
use the next size smaller and make adjustments in accordance with Section 3.3.8.
4)
Place Side Plate S onto the Suspension Shaft.
5)
Install the outer adjusting Spacers on the Suspension Shaft outside of Side Plate S. Insert the Shaft Stopper Pin
into Suspension Shaft. Temporarily install the split pin in the Shaft Stopper Pin and bend the split pin slightly to hold
it in place. The split pin should be fully bent after checking and attaining the proper beam flange adjustment.

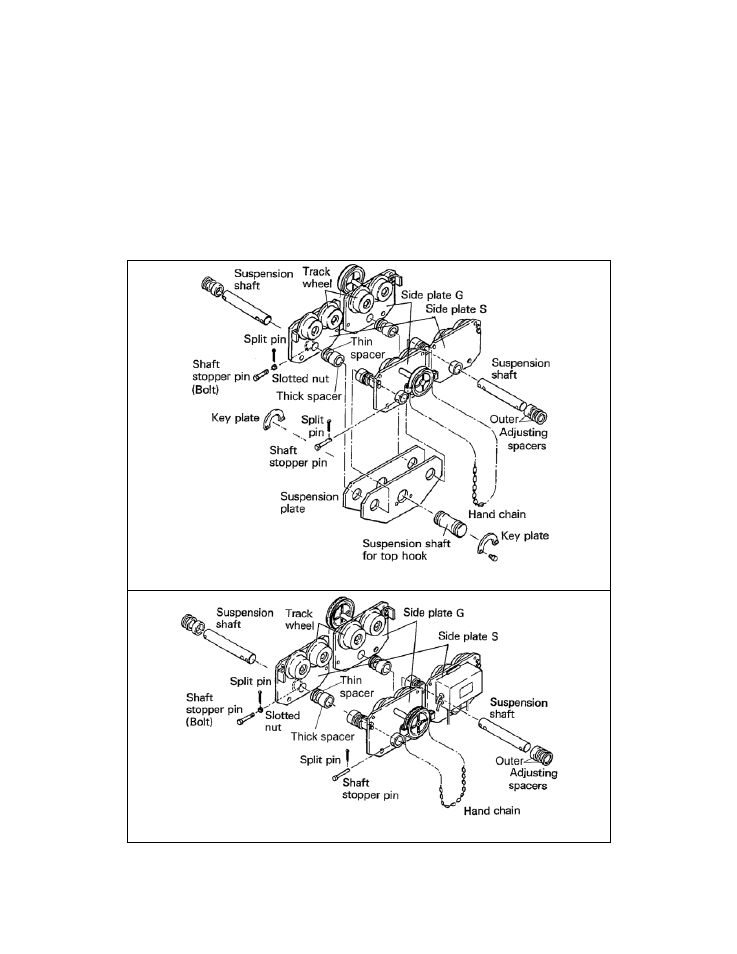

Figure 3-31 Assembling the Trolley – 15-20 Ton Capacity (Manual)
Figure 3-32 Assembling the Trolley – 15-20 Ton Capacity (Electric)
35
