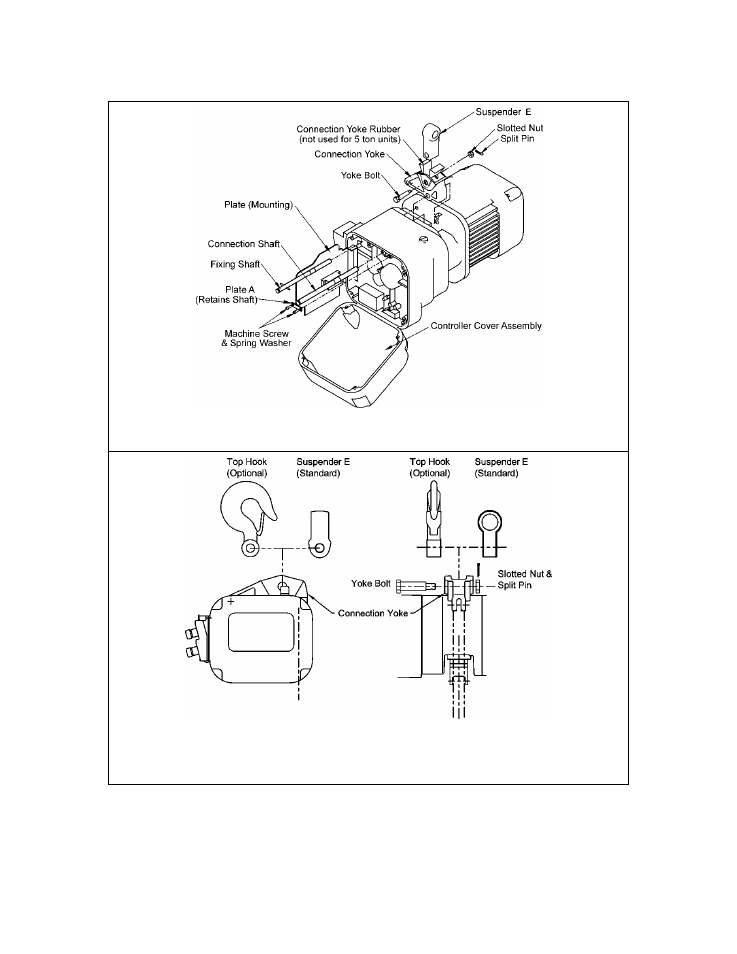

Figure 3-14 Installing Connection Yoke with Suspender E on ER Hoists –

Connection Yoke standard on 030C & 050 models

Note: Unlike 3 Ton (Single Fall) and below (see Figure 3-12), Suspender G for 3 Ton (030C) and
5 Ton connects directly to the Connection Yoke without the Connection Yoke Rubber.

Figure 3-15 Installing Suspender E or G on 3 Ton (030C) and 5 Ton ER Hoists





25
