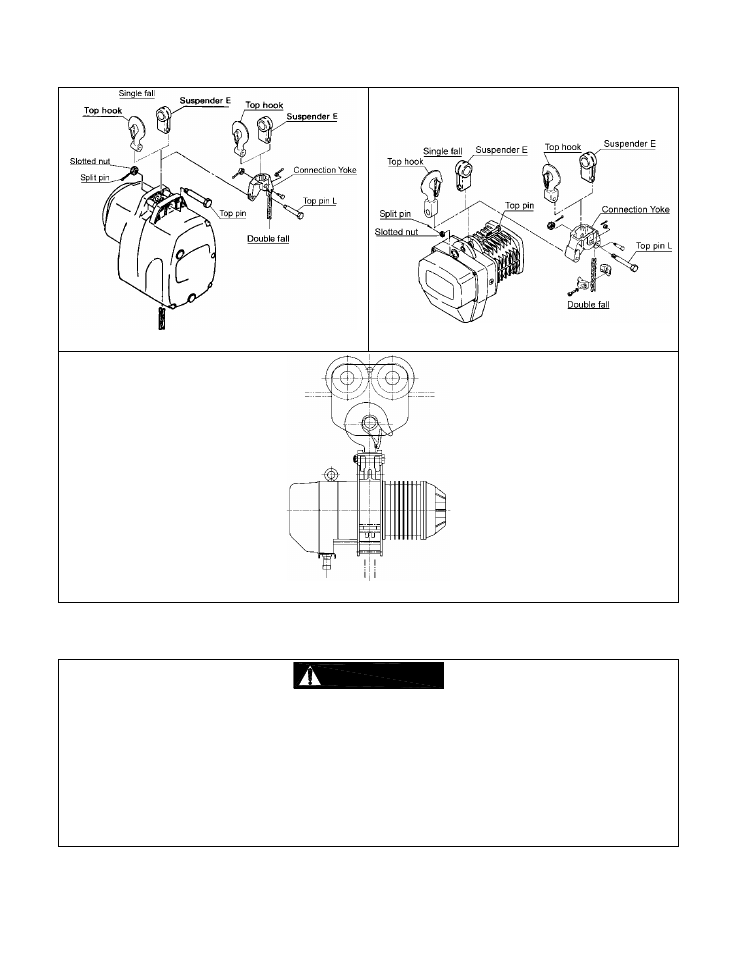

Figure 3-11 Model SH

Figure 3-12 Model ES

Figure 3-13 Model 5 Ton ES

3.2.5

To Couple a 1/8-5 Ton Model ER Electric chain hoist to a TF2/TS2 trolley, access to the ER Electrical controls is
required. Refer to Figure 3-14 or Figure 3-15, proceed as follows.



HAZARDOUS VOLTAGES ARE PRESENT IN THE HOIST CONTROL BOX, IN THE SUPPLY OF ELECTRICAL
POWER TO THE HOIST MOTOR.

Before performing ANY mechanical or electrical maintenance on the equipment, de-energize (disconnect) the main
switch supplying power to the equipment; and lock and tag the main switch in the de-energized position. Refer to ANSI
Z244.1, “Personnel Protection – Lockout/Tagout of Energy Sources”.

Only trained and competent personnel should inspect and repair this equipment.
