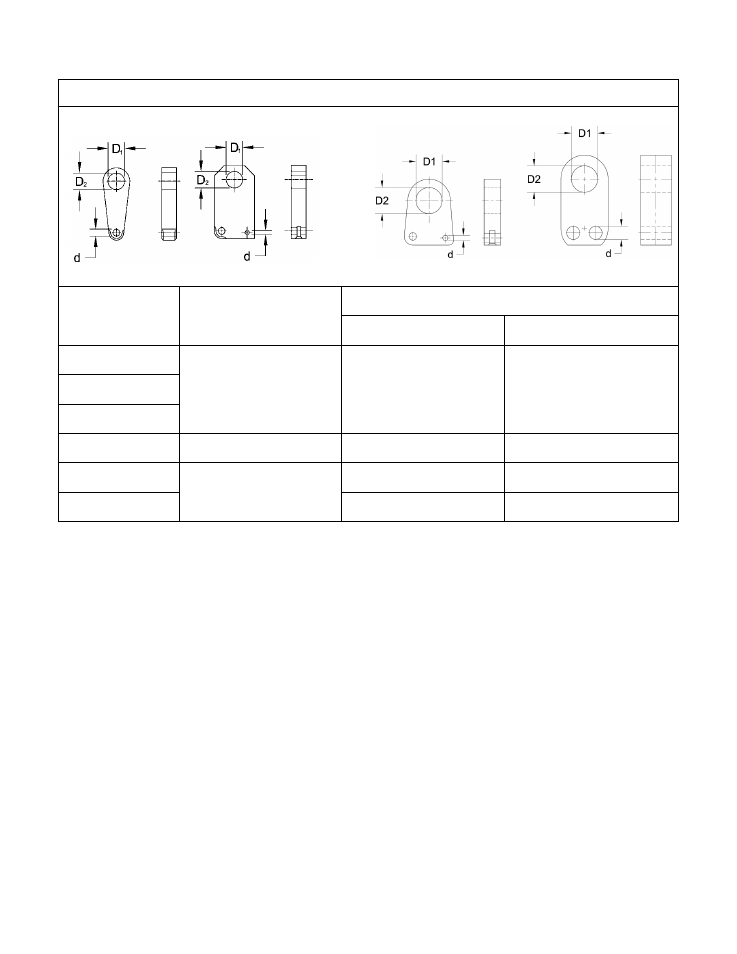

Table 5-5 (Continued) Suspender Wear Measurements


TCR SUSPENDERS

Trolley Capacity

D2 – D1 Limit

d

Standard in. (mm)

Limit in. (mm)

1/4

0.04 (1)

0.51 (13)

0.55 (13.9)

1/2 – 1

2

3

0.06 (1.5)

0.80 (20)

0.82 (20.8)

6

.08 (2)

0.55 (14)

0.57 (14.6)

10

1.38 (35)

1.43 (36.4)
